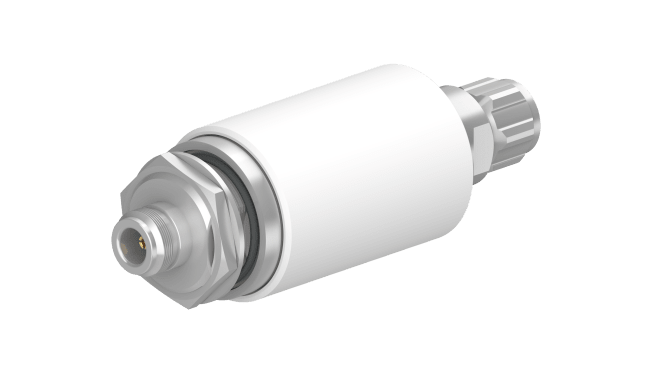

9077.17.0030
Peak Power Range2 | 1000W |
PIM 3rd Range2 | 150 dBc typ. |
Frequency min. Range2 | 300MHz |
Side of Bulkhead | Port 2 |
CW Power Frame | 500W |
Port1 Gender | plug (male) |
IP Rating | IP65 |
Port1 Connector | false |
Blocking Voltage OC max. | 4000kV |
CW Power Range2 | 500W |
Insertion Loss Frame | 0.2dB |
Frequency min. Frame | 160MHz |
Outer Block | true |
Port2 Gender | jack (female) |
Frequency max. Frame | 3000MHz |
Port2 Centre Contact Plating | Gold Plating (without Nickel underplating) |
Insertion Loss Range2 | 0.1dB |
PIM 3rd Frame | 150 dBc typ. |
Operation Temperature min. | -40°C |
Inner Block | true |
Port1 Centre Contact Material | Brass |
Return Loss Range2 | 26.44dB |
Blocking Voltage CC max. | 4000V |
Peak Power Frame | 1000W |
Bracket Mounting | false |
Product is Lead-Free Soldered | not soldered |
Weight | 459g |
Port2 Centre Contact Material | Copper Beryllium Alloy |
Return Loss Frame | 22dB |
Mounting Hole | 110 |
Port2 Connector | false |
Highlight4 | Grounding feature |
Leakage Current | 5µA |
Operation Temperature max. | 85°C |
Port1 Centre Contact Plating | Gold Plating (without Nickel underplating) |
Highlight3 | Broadband operation |
Highlight2 | Can also be installed reversely |
2002/96/EC (WEEE) | special marking needed |
Class | 1370 |
2006/1907/EC (REACH) | compliant |
Housing Material | POM (Polyoxymethylene) |
Frequency max. Range2 | 2500MHz |
Description | Broadband HIGH VOLTAGE DC-DC Block |
Highlight1 | Inner and outer conductor blocked (DC-DC Block) |
Impedance | 50 |
2011/65/EC (RoHS) | compliant |
OBJECT_ID | 7138904 |
