Frequency min. 2 |
2 GHz |
Outer Contact |
Brass |
to Ambient Temperature |
25 °C |
Average Power |
25 W |
Centre Contact Plating |
Silver Plating |
VSWR2 |
1.2 |
Power Linearly Derated to |
N W |
Outer Contact Plating |
SUCOPLATE (R) Plating |
Frequency min. Frame |
N GHz |
VSWR Frame |
1.2 |
Type Number1 |
6525.41.AA |
Packaging1 |
Single |
Peak Power |
1500 W |
Frequency max. Frame |
5 GHz |
Weight |
0.204 kg |
Nominal Impedance 1 |
50 |
Interface Standard1 |
IEC 60169-4_CECC 22190_DIN 47223_VG 95250 |
Gasket (Connector 1) |
VMQ (Silicone rubber) |
Puls Width |
5 µs |
Body Heat Sink |
Aluminium |
Return Loss2 |
20.8 dB |
Centre Contact |
Brass |
Body Heat Sink Plating |
Anodized |
at Ambient Temperature |
150 °C |
Return Loss Frame |
20.8 dB |
Resistor Substrate |
Beryllium Oxide |

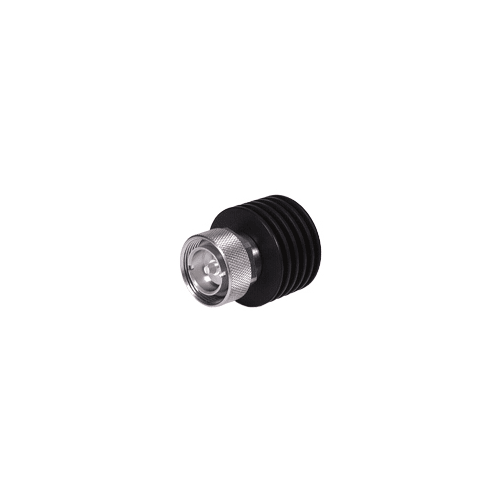

Termination Description |
Standard Termination, Medium Power |
Coupling Nut Platin |
SUCOPLATE (R) Plating |
Connector Gender 1 |
plug (male) |
Insulator |
PFA / PTFE |
Coupling Nut |
Brass |
Duty Cycle |
0.05 % |
2002/96/EC (WEEE) |
special marking needed |
Class |
1195 |
Connector Series 1 |
7/16 |
Frequency max. 2 |
5 GHz |
Frequency max. 1 |
2 GHz |
Frequency min. 1 |
N GHz |
ID |
6525.41.AA |
2011/65/EC (RoHS) |
compliant |
Operating Temperature max. |
150 °C |
Operating Temperature min. |
-40 °C |
Return Loss1 |
26.4 dB |
VSWR1 |
1.1 |
OBJECT_ID |
7138648 |
