| Verified for Lead-Free Soldering |
false |
| Operating Temperature min. |
-55°C |
| Attenuation Coefficient b max. |
0.0078 |
| Epsilon r |
1.7 |
| Attenuation Coefficient b |
0.0071 |
| Attenuation Coefficient a |
0.15 |
| Attenuation Coefficient a max. |
0.165 |
| Calculated Power |
false |
| Centre Conductor Diameter |
2.05mm |
| Centre Conductor Material |
Copper, Silver plated |
| Operating Temperature max. |
200°C |
| Outer Conductor 2 Description |
Outer conductor |
| Outer Conductor 3 Description |
Outer conductor |
| Outer Conductor 4 Description |
Outer conductor |
| Screen Frequency max. |
18GHz |
| Screen Frequency min. |
0.1GHz |
| Outer Cond1 Coverage |
100% |
| Outer Conductor1 Diameter |
6.42mm |
| Outer Conductor1 Material |
Copper, Silver plated |
| Outer Conductor2 Diameter |
7.1mm |
| Outer Conductor2 Material |
Copper, Silver plated |
| 2002/96/EC (WEEE) |
no special marking needed |
| Class |
1148 |
| 2006/1907/EC (REACH) |
compliant |
| 2000/53/EC (ELV) |
compliant |
| Armoring 1 Description |
Armor |
| Armoring 2 Description |
Armor |
| Armoring 3 Description |
Armor |
| Armoring 4 Description |
Armor |
| Cable Category |
Flexible microwave cable |
| Cable Family |
Eacon: Field mountable flexible microwave cables |
| Kabelgruppe - Kabel |
U96 |
| Calc IL/Power up to Freq |
17MHz |
| Capacitance |
87pF/m |
| Centre Conductor Design |
Wire |
| CW Power |
1582W |
| CW Power Frequency |
1GHz |
| Description |

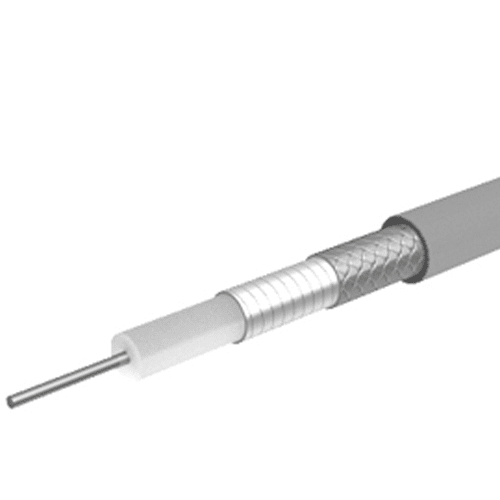

50 Ohm, 18 GHz, 200°C, ø7.7 mm, FEP jacket |
| Dielectric Diameter |
6.2mm |
| Dielectric Material |
PTFE-LD |
| Distribution txt |
Field mountable, 50 Ohm, 18 GHz, 200°C, ø7.7 mm, FEP jacket |
| Dynamic Bend Radius |
40mm |
| Fire Test a |
MIL-T-87104 § 4.6.4.8 |
| Fire Test c |
FAR 25.869 |
| Halogen Free |
false |
| ID |
EACON_6C |
| Impedance |
50Ohm |
| Impedance Tolerance ± |
1Ohm |
| Insulation Resistance |
100000000MOhm/m |
| Jacket Colour |
RAL 9010 - wh |
| Jacket Diameter |
7.7mm |
| Jacket Material |
FEP (Fluorinated ethylene propylene) |
| Jacket Tolerance |
0.1mm |
| 2011/65/EC (RoHS) |
compliant |
| Number of Screens |
2 |
| Only as Assembly |
false |
| Operating Frequency |
18GHz |
| Operating Voltage |
3.8kV |
| Outer Conductor1 Design |
wrapped Foil |
| Outer Conductor2 Design |
Braid |
| Propagation Velocity |
77% of c |
| Weight |
14.8kg/100m |
| Screen Effectiveness |
90dB |
| Signal Delay |
4.3ns/m |
| Static Bend Radius |
24mm |
| OBJECT_ID |
6948325 |
