9091.99.0267
| Height | 58mm |
| Mast Diameter max. | 85mm |
| Mast Diameter min. | 25mm |
| Material | Stainless Steel |
| Depth | 70mm |
| Notes | Down- / sidetilt and radial-turn bracket for SENCITY® Spot-S antennas For outdoor and indoor applications Two suitable hose clamps for pole mount option included |
| Width | 42mm |
| Mechanical Remarks | Max. tractive force20N in x/y/z direction Mounting material2 screws M4 L8mm and 2 hose clamps for pole-diameter 25 to 85 mm |
| Class | 1226 |
| 2006/1907/EC (REACH) | compliant |

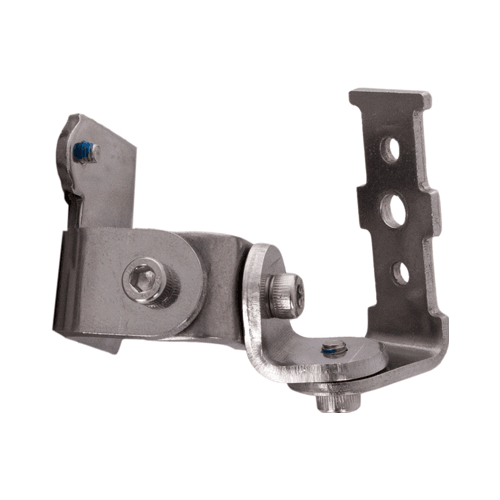

| Description | Adjustable Antenna 3D Pole and Wall Mount Bracket |
| ID | 9091.99.0267 |
| 2011/65/EC (RoHS) | compliant |
| OBJECT_ID | 6489125 |
