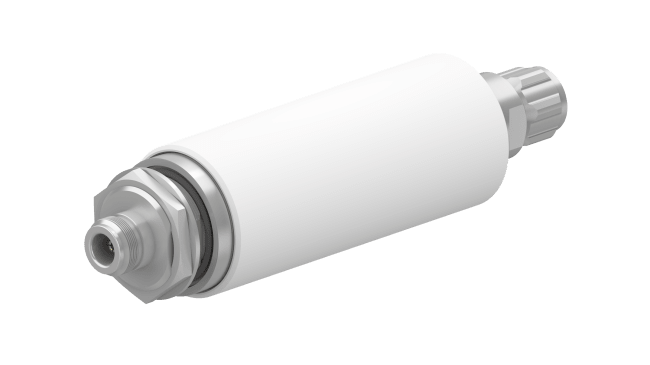

9077.17.0006
| H+S | |
|---|---|
| Side of bulkhead | Port 2 |
| PIM 3rd order | -150 dBc typ. , -150 dBc |
| Moisture resistance according | MIL-STD-202, Method 106 |
| Impedance | 50 Ω |
| Power avg. / peak | ≤80 W / ≤250 W |
| Vibration according | MIL-STD-202, Method 204, Cond. D |
| Insertion loss | ≤ 0.5 dB |
| Storage temperature | -40 °C ... 85 °C |
| Operation temperature | -40 °C ... 85 °C |
| Product description | Broadband HIGH VOLTAGE DC-DC Block |
| Thermal shock according | MIL-STD-202, Method 107, Cond. B |
| Galvanic isolation outer conductor | Yes |
| Insertion loss typical | ≤ 0.5 dB |
| Product code | 9077.17.0006 |
| Main path connectors | Port 1: N plug (male)Port 2: N jack (female) |
| Housing material / plating | POM (Polyoxymethylene) |
| Galvanic isolation inner conductor | Yes |
| Ingress protection (IP Rating) | IP65 |
| Leakage current | ≤ 50 µA |
| Test voltage | 18000 V |
| Blocking voltage outer conductor | ≤ 15000 V DC |
| Frequency frame | 180 MHz to 3000 MHz |
| Mounting and grounding | MH110 (bulkhead mounting) |
| Return loss typical | ≥ 16 dB , ≥ 20 dB |
| Center contact, material / plating | Port 1: Brass / Gold Plating (without Nickel underplating)Port 2: Copper Beryllium Alloy / Gold Plating (without Nickel underplating) |
| Frequency range | 380 MHz ... 3000 MHz |
| Blocking voltage center conductor | ≤ 15000 V DC |
| Test leakage current max | 100 µA |
| Peak power frame | ≤ 250 W |
| CW power frame | ≤ 80 W |
| Weight | 660 g |
