Produktnummer: 85031825
Huber Suhner

Impulse Sparkover 100 V/µs 725V
External Remarks GDT unit for retrofit and replacement for series 3402 (Platform 3000) UL recognized component, UL File E153537 DC voltage < 48 V DC current <= 2.5 A Turn-off time: 20 s typically at 2.0 A and 25 °C ambient temperature < 40 s typically below 1 A and 25 °C ambient temperature Recovery time: 7 s at 25 °C ambient temperature Operating temperature: 40 °C to +85 °C (Lightning protection functionality) 20 °C to +85 °C (SEMPER(TM) functionality) (Specifications subject to change without notice)
Insulation Resistance 10GOhm
Class 1221

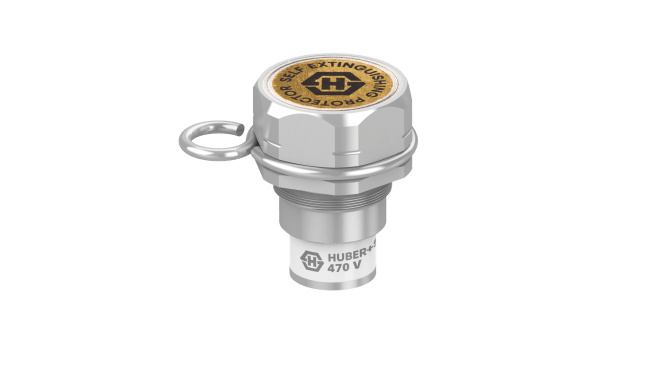

Description Gas discharge tube 470 V (SEMPER)
ID 9071.99.0950
2011/65/EC (RoHS) compliant
Operating Temperature max. 85°C
Operating Temperature min. -20°C
OBJECT_ID 7122653
