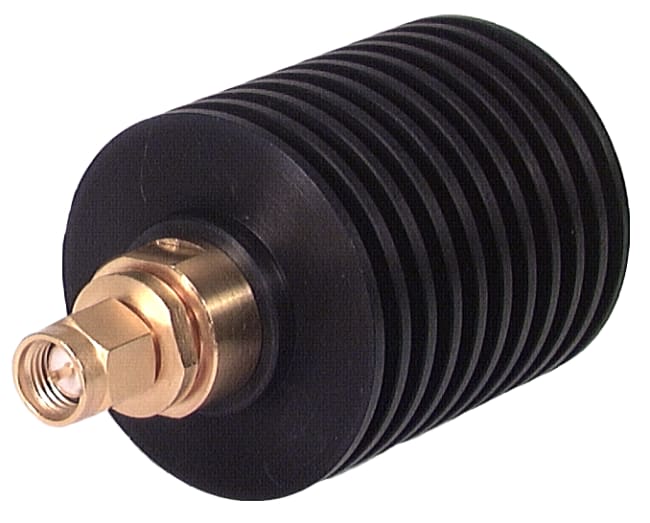

6515.19.A
Frequency min. 3 | 4 GHz |
Frequency min. 4 | 10 GHz |
Frequency min. 2 | 1 GHz |
Outer Contact | Copper Beryllium Alloy |
to Ambient Temperature | 25 °C |
VSWR4 | 1.25 |
Average Power | 15 W |
Centre Contact Plating | Gold Plating (without Nickel underplating) |
VSWR3 | 1.2 |
VSWR2 | 1.1 |
Power Linearly Derated to | N W |
Outer Contact Plating | Gold Plating (without Nickel underplating) |
Frequency min. Frame | N GHz |
VSWR Frame | 1.25 |
Type Number1 | 6515.19.A |
Packaging1 | Single |
Peak Power | 1000 W |
Frequency max. Frame | 12.4 GHz |
Weight | 0.081 kg |
Nominal Impedance 1 | 50 |
Interface Standard1 | IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
Gasket (Connector 1) | VMQ (Silicone rubber) |
Puls Width | 5 µs |
Body Heat Sink | Aluminium |
Return Loss4 | 19 dB |
Return Loss2 | 26.4 dB |
Return Loss3 | 20.8 dB |
Centre Contact | Copper Beryllium Alloy |
at Ambient Temperature | 130 °C |
Return Loss Frame | 19.1 dB |
Termination Description | Standard Termination, Medium Power |
Resistor Substrate | Beryllium Oxide |
Coupling Nut Platin | Gold Plating (Nickel underplated) |
Frequency max. 4 | 12.4 GHz |
Connector Gender 1 | plug (male) |
Insulator | PFA / PTFE |
Coupling Nut | Bronze |
Duty Cycle | 0.05 % |
2002/96/EC (WEEE) | special marking needed |
Class | 1195 |
Connector Series 1 | SMA |
Frequency max. 2 | 4 GHz |
Frequency max. 3 | 10 GHz |
Frequency max. 1 | 1 GHz |
Frequency min. 1 | N GHz |
ID | 6515.19.A |
2011/65/EC (RoHS) | compliant |
Operating Temperature max. | 130 °C |
Operating Temperature min. | -40 °C |
Return Loss1 | 32.3 dB |
VSWR1 | 1.05 |
OBJECT_ID | 7138645 |
