| Frequency min. 3 |
4 GHz |
| Frequency min. 4 |
10 GHz |
| Frequency min. 2 |
1 GHz |
| Outer Contact |
Stainless Steel |
| to Ambient Temperature |
25 °C |
| VSWR4 |
1.25 |
| Average Power |
15 W |
| Centre Contact Plating |
Gold Plating (without Nickel underplating) |
| VSWR3 |
1.2 |
| VSWR2 |
1.1 |
| Power Linearly Derated to |
N W |
| Frequency min. Frame |
N GHz |
| VSWR Frame |
1.25 |
| Type Number1 |

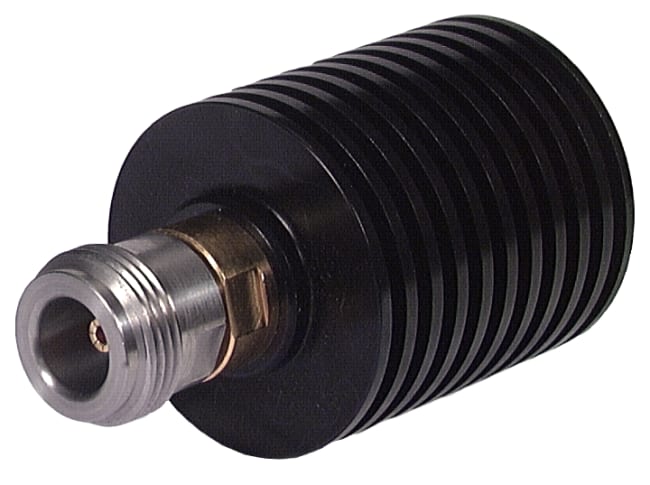

6515.17.B |
| Packaging1 |
Single |
| Peak Power |
1000 W |
| Frequency max. Frame |
12.4 GHz |
| Weight |
0.087 kg |
| Nominal Impedance 1 |
50 |
| Interface Standard1 |
IEC 60169-16_MIL-STD-348A/304_CECC 22210 |
| Puls Width |
5 µs |
| Body Heat Sink |
Aluminium |
| Return Loss4 |
19 dB |
| Return Loss2 |
26.4 dB |
| Return Loss3 |
20.8 dB |
| Centre Contact |
Copper Beryllium Alloy |
| Body Heat Sink Plating |
Anodized |
| at Ambient Temperature |
130 °C |
| Return Loss Frame |
19.1 dB |
| Termination Description |
Standard Termination, Medium Power |
| Resistor Substrate |
Beryllium Oxide |
| Frequency max. 4 |
12.4 GHz |
| Connector Gender 1 |
jack (female) |
| Insulator |
PFA / PTFE |
| Duty Cycle |
0.05 % |
| 2002/96/EC (WEEE) |
special marking needed |
| Class |
1195 |
| Connector Series 1 |
N |
| Frequency max. 2 |
4 GHz |
| Frequency max. 3 |
10 GHz |
| Frequency max. 1 |
1 GHz |
| Frequency min. 1 |
N GHz |
| ID |
6515.17.B |
| 2011/65/EC (RoHS) |
compliant |
| Operating Temperature max. |
130 °C |
| Operating Temperature min. |
-40 °C |
| Return Loss1 |
32.3 dB |
| VSWR1 |
1.05 |
| OBJECT_ID |
7138644 |
