| H+S |
| Side of bulkhead |
protected side |
| AISG insertion loss |
0.1 dB |
| Moisture resistance according |
MIL-STD-202, Method 106 |
| Vibration according |
MIL-STD-202, Method 204, Cond. A |
| bre.att-ter-frequency-range-max |
2700 |
| bre.att-ter-frequency-range-min |
690 |
| Storage temperature |
-40 °C ... 85 °C |
| Residual pulse energy (typ.) |
250 µJ (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs) |
| Thermal shock according |
MIL-STD-202, Method 107, Cond. B |
| DC supply voltage |
48 V |
| Insertion loss typical |
≤ 0.1 dB |
| Product code |

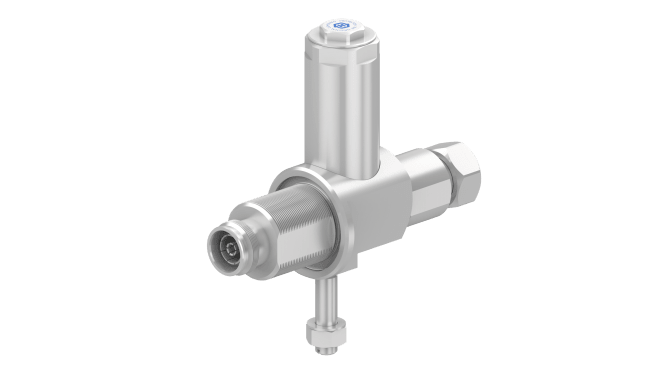

3409.31.0001 |
| Main path connectors |
Port 1: unprotected, 4.3-10 plug (male)Port 2: protected, 4.3-10 jack (female) |
| Housing material / plating |
Brass / SUCOPLATE (R) Plating |
| Ingress protection (IP Rating) |
Mated / IP67, according to IEC 60529 |
| AISG return loss |
18 dB |
| Details |
CAS: 7439-92-1 Lead |
| Mounting and grounding |
MH110 (bulkhead mounting), M8 (screw), brk (bracket) |
| Return loss typical |
≥ 24 dB |
| Surge current handling capability |
30 kA single, 20 kA multiple (test pulse 8/20 µs) |
| Center contact, material / plating |
Port 1: Brass / Silver PlatingPort 2: Bronze / Silver Plating |
| EMP can be install reversed |
YES |
| AISG frequency |
10 MHz |
| PIM 3rd order |
-160 dBc max. |
| DC current |
13 A |
| Mating cycles |
500 |
| Weight |
522 g |
| Exemptions |
6c |
| Gas tube |
Yes DC, GDT included, replaceable, 9071.99.0548 (90 V) |
| Directive |
RoHS 2011/65/EU and (EU) 2015/863 |
| Impedance |
50 Ω |
| Operation temperature |
-40 °C ... 85 °C |
| Rating |
Compliant with exemption , Contains one or more SVHC >0,1% |
| Product description |
High-power/low-IM GDT hybrid technology |
| Frequency frame |
690 MHz to 2700 MHz |
| Regulation |
REACH 1907/2006 Article 33 SVHC |
| CW power frame |
1500 |
