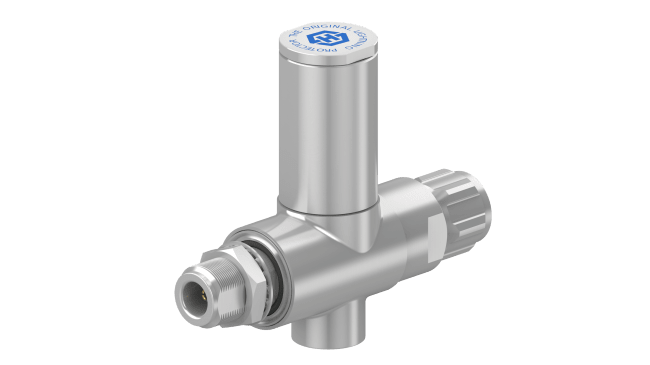

3407.17.0053

Produktnummer: 23001675
Huber Suhner
Lagerbeholdning:

Gender Protected Side jack (female)
Thread M8
Side of Bulkhead protected side
CW Power Frame 500 W
Temperature Shock MIL-STD-202, Method 107, Cond. B
Current Handling 8/20 50 multiple
Vibration MIL-STD-202, Method 204, Cond. A
Weight 320 g
IP Rating IP65
Connector Port 1 N
Insertion Loss Frame 0.2 dB
Frequency min. Frame 320 MHz
Residual Pulse Energy 0.03 µJ
Description Port2 protected
Frequency max. Frame 512 MHz
Description Port1 unprotected
Center Contact Plating (Port 2) Gold Plating (without Nickel underplating)
Right Angle N
PIM 3rd Frame not specified
Center Contact (Port 1) Brass
Gender Unprotected Side plug (male)
Gas Tube No DC / shorted QW or LC
Center Contact (Port 2) Copper Beryllium Alloy
Return Loss Frame 20 dB
Connector Port 2 N
Current Handling 10/350 25 multiple
Moisture Resistance MIL-STD-202, Method 106
Mounting Hole 12
Center Contact Plating (Port 1) Gold Plating (without Nickel underplating)
2002/96/EC special marking needed
Class 1217
2006/1907/EC (REACH) compliant
Housing Brass
RF Protector Description Quarter-wave stub technology with integrated high-pass filter
Housing Plating SUCOPLATE (R) Plating
ID 3407.17.0053
Impedance 50
2011/65/EC compliant acc. Annex III
Number of Matings 500
Operating Temperature max. 85 °C
Operating Temperature min. -40 °C
