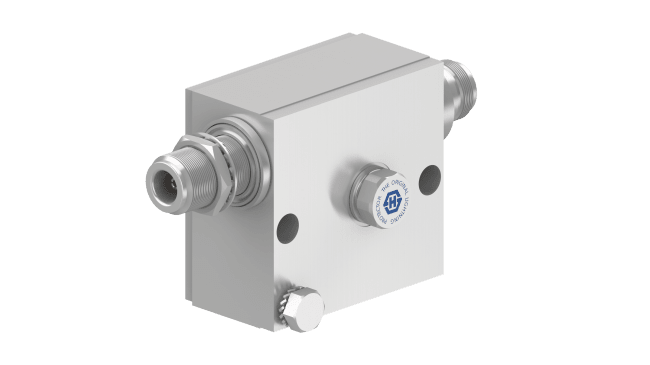

3403.17.0045
| Gender Protected Side | jack (female) |
| Thread | M4 |
| PIM 3rd Range | not specified |
| Frequency min. Range | 1500 MHz |
| Side of Bulkhead | protected side |
| Temperature Shock | MIL-STD-202, Method 107, Cond. B |
| CW Power Frame | 50 W |
| Current Handling 8/20 | 30 single / 20 multiple |
| Vibration | MIL-STD-202, Method 204, Cond. A |
| Weight | 330 g |
| IP Rating | IP66 |
| CW Power Range | 50 W |
| Connector Port 1 | N |
| Insertion Loss Frame | 0.4 dB |
| Frequency min. Frame | 800 MHz |
| Residual Pulse Energy | 6 µJ |
| Description Port2 | protected |
| Description Port1 | unprotected |
| Frequency max. Frame | 2000 MHz |
| Center Contact Plating (Port 2) | Gold Plating (without Nickel underplating) |
| Right Angle | N |
| DC Current | 3 A |
| Insertion Loss Range | 0.4 dB |
| PIM 3rd Frame | not specified |
| Center Contact (Port 1) | Copper Beryllium Alloy |
| Return Loss Range | 26.44 dB |
| Gender Unprotected Side | jack (female) |
| DC Voltage | 15 V |
| Gas Tube | Yes DC, GDT included |
| Center Contact (Port 2) | Copper Beryllium Alloy |
| Return Loss Frame | 20 dB |
| Connector Port 2 | N |
| External Remarks | Current-handling capability: 25 kA once and 10 kA multiple (8 / 20 us test pulse) Residual pulse energy: typ. 6uJ (test pulse 4 kV, 1.2 / 50 us ; 2 kA, 8 / 20 us ; IEC 61000-4-5) Residual pulse amplitude: typ. <60V (measured with gas capsule 73 Z-0-0-548 (90 V)) Gas capsule 73Z-0-0-548 included (sparkover voltage 90 V) Max. bypass voltage: 15 V Max. bypass current: 3A DC bypass resistance: < 1 Ohm Bulkhead on the protected side. |
| Moisture Resistance | MIL-STD-202, Method 106 |
| Mounting Hole | 119 |
| Center Contact Plating (Port 1) | Gold Plating (without Nickel underplating) |
| Highlight3 | Replaceable GDT 9071.99.0548, (90 V) included |
| Highlight2 | DC continuity for remote powering |
| 2002/96/EC | special marking needed |
| Class | 1217 |
| 2006/1907/EC (REACH) | compliant |
| Housing | Aluminium |
| RF Protector Description | Fine protector hybrid technology |
| Frequency max. Range | 1600 MHz |
| Housing Plating | Chromatized |
| Highlight1 | Broad-band design |
| ID | 3403.17.0045 |
| Impedance | 50 |
| 2011/65/EC | compliant acc. Annex III |
| Number of Matings | 500 |
| Operating Temperature max. | 85 °C |
| Operating Temperature min. | -40 °C |
| OBJECT_ID | 7140219 |
