| Gender Protected Side |
jack (female) |
| Side of Bulkhead |
protected side |
| Temperature Shock |
MIL-STD-202, Method 107, Cond. B |
| CW Power Frame |
50 W |
| Current Handling 8/20 |
40 single / 20 kA multiple |
| Vibration |
MIL-STD-202, Method 204, Cond. D |
| Weight |
103 g |
| IP Rating |
IP65 |
| Connector Port 1 |
F |
| Insertion Loss Frame |
0.2 dB |
| Frequency min. Frame |
N MHz |
| Residual Pulse Energy |
350 µJ |
| Description Port2 |
protected |
| Frequency max. Frame |
1000 MHz |
| Description Port1 |
unprotected |
| Center Contact Plating (Port 2) |
Gold Plating (without Nickel underplating) |
| Right Angle |
N |
| PIM 3rd Frame |
not specified |
| Center Contact (Port 1) |
Copper Beryllium Alloy |
| Gender Unprotected Side |
jack (female) |
| Gas Tube |
Yes DC, GDT included |
| Center Contact (Port 2) |
Copper Beryllium Alloy |
| Connector Port 2 |
F |
| Moisture Resistance |
MIL-STD-202, Method 106 |
| Mounting Hole |
12 |
| Highlight4 |
Replaceable GDT 9071.99.0547 (230 V) included |
| Center Contact Plating (Port 1) |
Gold Plating (without Nickel underplating) |
| Highlight3 |
GDT holder with chain |
| Highlight2 |
The protector can also be installed reversely |
| 2002/96/EC |
special marking needed |
| Class |
1217 |
| 2006/1907/EC (REACH) |
compliant |
| Housing |
Brass |
| RF Protector Description |
GDT technology up to 1.0 GHz |
| Housing Plating |
SUCOPLATE (R) Plating |
| Highlight1 |
DC continuity for remote powering |
| ID |

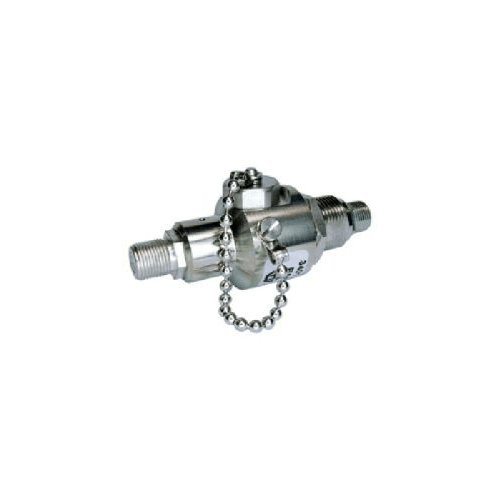

3401.99.0020 |
| Impedance |
75 |
| 2011/65/EC |
compliant |
| Number of Matings |
100 |
| Operating Temperature max. |
85 °C |
| Operating Temperature min. |
-40 °C |
| OBJECT_ID |
7140506 |
