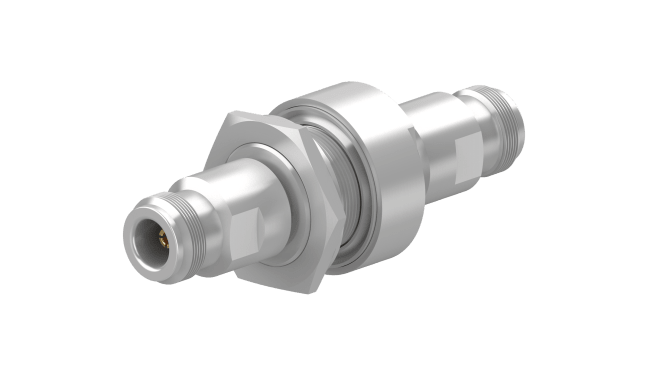

3400.17.0380
| H+S | |
|---|---|
| Side of bulkhead | protected side |
| Gas tube | No DC / shorted QW or LC |
| Moisture resistance according | MIL-STD-202, Method 106 |
| Impedance | 50 Ω |
| Vibration according | MIL-STD-202, Method 204, Cond. A |
| Storage temperature | -40 °C ... 85 °C |
| Operation temperature | -40 °C ... 85 °C |
| Residual pulse energy (typ.) | 600 nJ (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs) |
| Product description | Quarter-wave stub technology |
| Thermal shock according | MIL-STD-202, Method 107, Cond. B |
| Insertion loss typical | ≤ 0.3 dB |
| Product code | 3400.17.0380 |
| Main path connectors | Port 1: unprotected, N jack (female)Port 2: protected, N jack (female) |
| Housing material / plating | Brass / SUCOPLATE (R) Plating |
| Ingress protection (IP Rating) | Mated / IP65, according to IEC 60529 |
| Frequency frame | 6000 MHz to 18000 MHz |
| Mounting and grounding | MH69 (bulkhead mounting) |
| Residual pulse voltage (typ.) | 2 V (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs) |
| Return loss typical | ≥ 20 dB |
| Surge current handling capability | 50 kA multiple (test pulse 8/20 µs) |
| Center contact, material / plating | Port 1: Copper Beryllium Alloy / Gold Plating (without Nickel underplating)Port 2: Copper Beryllium Alloy / Gold Plating (without Nickel underplating) |
| EMP can be install reversed | YES |
| Mating cycles | 500 |
| Peak power frame | ≤ 1000 W |
| CW power frame | ≤ 100 W |
| Inline design | YES |
| Weight | 202 g |
