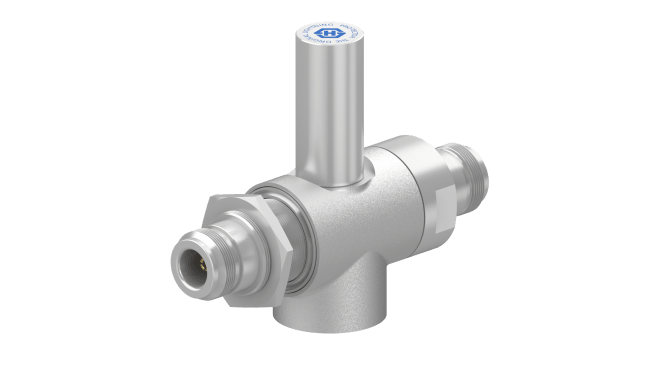

3400.17.0235
| Gender Protected Side | jack (female) |
| Thread | M8 |
| Temperature Shock | MIL-STD-202, Method 107, Cond. B |
| CW Power Frame | 300 W |
| Current Handling 8/20 | 50 multiple |
| Vibration | MIL-STD-202, Method 204, Cond. A |
| Weight | 308 g |
| IP Rating | IP65 |
| Connector Port 1 | N |
| Insertion Loss Frame | 0.25 dB |
| Frequency min. Frame | 5000 MHz |
| Residual Pulse Energy | 5 µJ |
| Description Port2 | protected |
| Frequency max. Frame | 7000 MHz |
| Description Port1 | unprotected |
| Center Contact Plating (Port 2) | Gold Plating (without Nickel underplating) |
| Right Angle | N |
| PIM 3rd Frame | not specified |
| Center Contact (Port 1) | Copper Beryllium Alloy |
| Gender Unprotected Side | jack (female) |
| Gas Tube | No DC / shorted QW or LC |
| Center Contact (Port 2) | Copper Beryllium Alloy |
| Return Loss Frame | 20 dB |
| Connector Port 2 | N |
| Current Handling 10/350 | 25 multiple |
| External Remarks | Flange mounting (MH 25) |
| Moisture Resistance | MIL-STD-202, Method 106 |
| Mounting Hole | 25 |
| Center Contact Plating (Port 1) | Gold Plating (without Nickel underplating) |
| Highlight2 | The protector can also be installed reversely |
| 2002/96/EC | special marking needed |
| Class | 1217 |
| 2006/1907/EC (REACH) | compliant |
| Housing | Brass |
| RF Protector Description | Quarter-wave stub technology |
| Housing Plating | SUCOPLATE (R) Plating |
| Highlight1 | Broad-band design |
| ID | 3400.17.0235 |
| Impedance | 50 |
| 2011/65/EC | compliant |
| Number of Matings | 500 |
| Operating Temperature max. | 85 °C |
| Operating Temperature min. | -40 °C |
| OBJECT_ID | 7140498 |
