| Cable Group4 |
X25 |
| Cable Group3 |
U11 |
| Flange Type |
square flange |
| Flange Dimension |
25.4 X 25.4 |
| Cable Entry Centre Contact |
soldered |
| Cable Entry Outer Contact |
clamped |
| Class |
1037 |
| Body Material |
Brass |
| Body Plating |
SUCOPLATE (R) Plating |
| Cable Group |
U7 |
| Cable Group2 |
U9 |
| Cable Retention Force |
257 N |
| Cable1 |
RG_223_/U |
| Cable2 |
RG_142_B/U |
| Cable3 |
RG_400_/U |
| Centre Contact Material |
Copper Beryllium Alloy |
| Centre Contact Plating |
Gold Plating (Nickel underplated) |

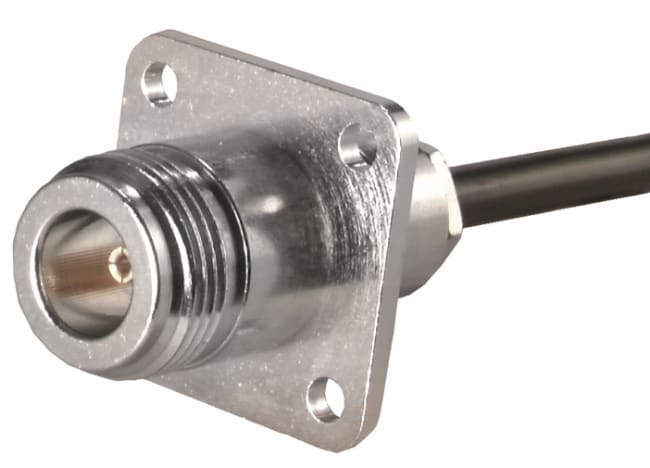

| Connector Description |
Straight panel cable jack, flange mount |
| CONNECTOR SERIES |
N |
| Dielectric Size |
3 mm |
| Gasket Material |
VMQ (Silicone rubber) |
| Gender |
jack |
| ID |
25_N-50-3-4/133_N |
| Impedance |
50 |
| Insulator Material |
PFA / PTFE |
| Interface Frequency max. |
11 GHz |
| Interface Standards |
IEC 61169-16_MIL-STD-348A/304_CECC 22210 |
| Junction |
cable |
| 2011/65/EC (RoHS) |
compliant |
| Mounting |
panel |
| Number of Matings |
500 |
| Operating Temperature max. |
165 °C |
| Operating Temperature min. |
-65 °C |
| Outer Contact Material |
Brass |
| Outer Contact Plating |
SUCOPLATE (R) Plating |
| Packaging |
Single |
| PATTERN CLASSES |
25 |
| Weight |
0.0426 kg |
| CONNECTOR SHAPE |
straight |
| Type Number |
25_N-50-3-4/133_NE |
| OBJECT_ID |
4519659 |
