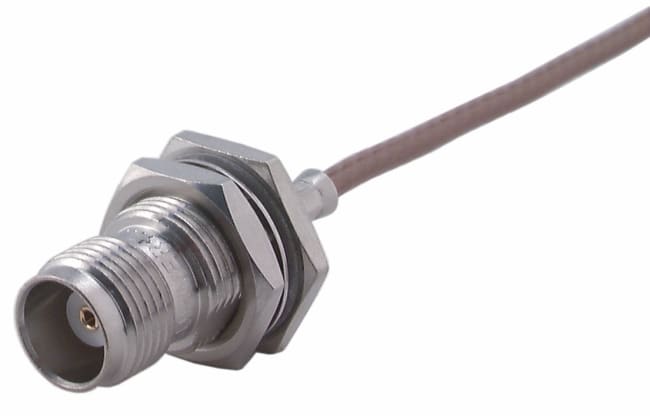

24 TNC-50-3-30/133NH
Cable Group3 | Y17 |
Flange Type | hexagonal flange |
Fastening Nut Plating | SUCOPLATE (R) Plating |
Fastening Nut Material | Brass |
Panel Thickness | 3.5mm |
Washer Material | Bronze |
Flange Dimension | hex 17 |
Washer Plating | SUCOPLATE (R) Plating |
External Remarks | El. Optimized for cable EZ 141 |
Highlight2 | Excellent return loss performance |
Cable Entry Centre Contact | soldered |
Cable Entry Outer Contact | soldered |
Class | 1037 |
Body Material | Brass |
Body Plating | SUCOPLATE (R) Plating |
Cable Group Connectors | Y5 |
Cable Group2 | Y12 |
Cable Retention Force | 310N |
Cable1 | EZ_141_TP_M17 |
Centre Contact Material | Copper Beryllium Alloy |
Centre Contact Plating | Gold Plating (Nickel underplated) |
Connector Description | Straight bulkhead cable feed through |
CONNECTOR SERIES | TNC |
Dielectric Size | 3mm |
Gasket Material | VMQ (Silicone rubber) |
Gender | jack |
Highlight1 | El. Optimized for cable EZ 141 |
ID | 24_TNC-50-3-30/133_N |
Impedance | 50 |
Insulator Material | PFA / PTFE |
Interface Frequency max. | 11GHz |
Interface Standards | IEC 60169-17_MIL-STD-348A/313_CECC 22200 |
Junction | cable |
2011/65/EC (RoHS) | compliant |
Mounting | bulkhead |
Number of Matings | 500 |
Operating Temperature max. | 165°C |
Operating Temperature min. | -65°C |
Outer Contact Material | Brass |
Outer Contact Plating | SUCOPLATE (R) Plating |
Packaging | Bulk 100 pcs |
PATTERN CLASSES | 24 |
Weight | 0.0177kg |
CONNECTOR SHAPE | straight |
Type Number | 24_TNC-50-3-30/133_NH |
OBJECT_ID | 3162108 |
