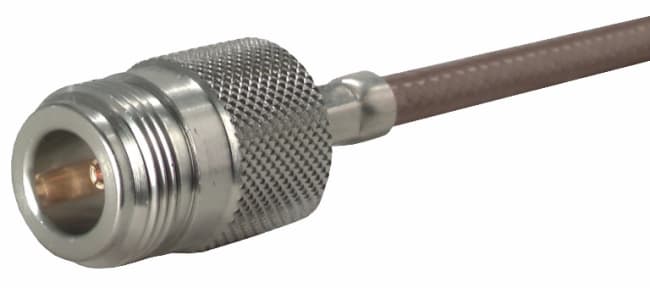

21 N-50-4-76/133 UH

Produktnummer: 22658836
Huber Suhner
Lagerbeholdning:

Cable Group3 X9
Cable Entry Centre Contact crimped
Cable Entry Outer Contact crimped
Class 1037
Body Material Brass
Body Plating SUCOPLATE (R) Plating
Cable Group S16
Cable Group2 S16
Cable Retention Force 125 N
Cable1 S_04172_D
Cable2 S_04262_D
Cable3 SX_04172_B-60
Centre Contact Material Copper Beryllium Alloy
Centre Contact Plating Gold Plating (without Nickel underplating)
Connector Description Straight cable jack
CONNECTOR SERIES N
Crimp Ferrule Material Copper
Crimp Ferrule Plating SUCOPLATE (R) Plating
Dielectric Size 4 mm
Gender jack
Highlight1 SUHNER full crimp cable attachement
ID 21_N-50-4-76/133_U
Impedance 50
Insulator Material PFA / PTFE
Interface Frequency max. 11 GHz
Interface Standards IEC 61169-16_MIL-STD-348A/304_CECC 22210
Junction cable
2011/65/EC (RoHS) compliant
Mounting none
Number of Matings 500
Operating Temperature max. 165 °C
Operating Temperature min. -65 °C
Outer Contact Material Brass
Outer Contact Plating SUCOPLATE (R) Plating
Packaging Bulk 100 pcs
PATTERN CLASSES 21
Weight 0.0356 kg
CONNECTOR SHAPE straight
Type Number 21_N-50-4-76/133_UH
OBJECT_ID 4356811
