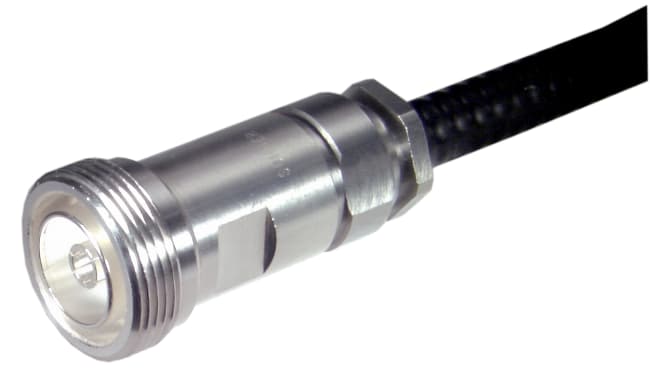

21 716-50-9-9/033_-E
H+S 7/16 Female for HighFlex 1/2
| Frequency min. Range2 | 2.5 GHz |
| Intermod. Static 2x20W | -155 dBc |
| VSWR Range 2 | 1.09 |
| Return Loss Range2 | 27 dB |
| Hightlight3 | Water protection according to IP 68 |
| Highlight2 | For outdoor applications |
| Cable Entry Centre Contact | plugged |
| Cable Entry Outer Contact | clamped |
| Class | 1037 |
| Body Material | Brass |
| Frequency max. Range2 | 3 GHz |
| Body Plating | SUCOPLATE (R) Plating |
| Cable Group Connectors | M9 |
| Cable Retention Force | 400 N |
| Cable1 | SUCOFEED_1/2_HF |
| Cable2 | SUCOFEED_1/2_HF_FR |
| Cable3 | SUCOFEED_1/2_HF_FR_UL |
| Cable5 | Heliax FSJ4-50B, NK Cables RFF 1/2-50, Cellflex SCF12-50 |
| Centre Contact Material | Bronze |
| Centre Contact Plating | Silver Plating |
| Connector Description | Straight cable jack |
| CONNECTOR SERIES | 7/16 |
| Coupling Nut Material | Brass |
| Coupling Nut Plating | SUCOPLATE (R) Plating |
| Dielectric Size | 9 mm |
| Frequency max. Range1 | 2.5 GHz |
| Frequency min. Range1 | N GHz |
| Gasket Material | NR (Natural Rubber) |
| Gender | jack |
| Highlight1 | QUICK-FIT connector |
| ID | 21_716-50-9-9/033_- |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 7.5 GHz |
| Interface Standards | IEC 61169-4_CECC 22190_DIN 47223_VG 95250 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 85 °C |
| Operating Temperature min. | -40 °C |
| Outer Contact Material | Brass |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| Packaging | Single |
| PATTERN CLASSES | 21 |
| Return Loss Range1 | 30 dB |
| Weight | 0.1194 kg |
| CONNECTOR SHAPE | straight |
| Type Number | 21_716-50-9-9/033_-E |
| VSWR Range 1 | 1.065 |
| OBJECT_ID | 2781985 |
