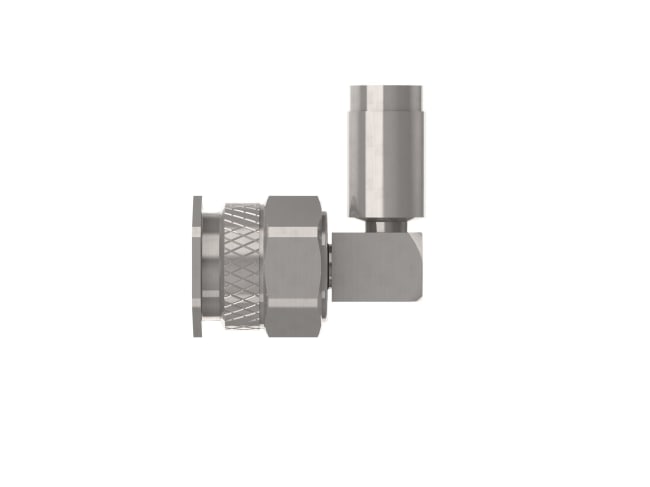

16 TNC-50-3-21/133NE
Coaxial connector
TNC, 50 Ohm, Right angle cable male
H+S | |
---|---|
Suitable cables | RG_400_/U |
Product code | 16_TNC-50-3-21/133_N |
Gasket | VMQ (Silicone rubber) |
Insulator | PFA / PTFE |
Centre contact | Gold Plating (Nickel underplated) |
Details | CAS: 7439-92-1 Lead |
Available as assembly only | No |
Cable group | U41U11 , U41 - 3 mm / 50 OhmU11 - 3 mm / 50 Ohm |
Crimp ferrule | Copper / SUCOPLATE (R) Plating |
Additional cables | ASNE 0293 XFRADOX_RF_400 |
Standard | IEC 60169-17_MIL-STD-348A/313_CECC 22200 |
Mating cycles | 500 |
Weight | 0.0298 kg |
Exemptions | 6c |
Directive | RoHS 2011/65/EU and (EU) 2015/863 |
Interface type | TNC |
Gender | plug |
Operation temperature | -65 °C ... 165 °C |
Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
Coupling nut | Brass / SUCOPLATE (R) Plating |
Outer conductor | Brass / SUCOPLATE (R) Plating |
Interface frequency | 11 GHz |
Body | Brass / SUCOPLATE (R) Plating |
Impedance | 50 Ω |
Regulation | REACH 1907/2006 Article 33 SVHC |
