| Cable Entry Centre Contact |
soldered |
| Cable Entry Outer Contact |
crimped |
| Class |
1037 |
| Body Material |
Brass |
| Body Plating |
Gold Plating (Nickel underplated) |
| Cable Group |
U1 |
| Cable Retention Force |
50 N |
| Cable1 |
RG_178_B/U |
| Cable2 |
RG_196_A/U |
| Centre Contact Material |
Copper Beryllium Alloy |
| Centre Contact Plating |
Gold Plating (Nickel underplated) |
| Connector Description |

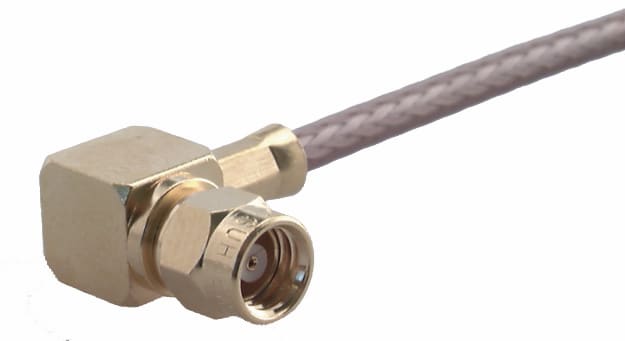

Right angle cable plug |
| CONNECTOR SERIES |
SMC |
| Coupling Nut Material |
Brass |
| Coupling Nut Plating |
Gold Plating (Nickel underplated) |
| Crimp Ferrule Material |
Copper |
| Crimp Ferrule Plating |
Gold Plating (without Nickel underplating) |
| Dielectric Size |
1 mm |
| Gender |
plug |
| ID |
16_SMC-50-1-20/111_N |
| Impedance |
50 |
| Insulator Material |
PFA / PTFE |
| Interface Frequency max. |
10 GHz |
| Interface Standards |
IEC 60169-9_MIL-STD-348A/312_CECC 22140 |
| Junction |
cable |
| 2011/65/EC (RoHS) |
compliant |
| Mounting |
none |
| Number of Matings |
500 |
| Operating Temperature max. |
165 °C |
| Operating Temperature min. |
-65 °C |
| Outer Contact Material |
Brass |
| Outer Contact Plating |
Gold Plating (Nickel underplated) |
| Packaging |
Single |
| PATTERN CLASSES |
16 |
| Weight |
0.0044 kg |
| CONNECTOR SHAPE |
right-angle |
| Type Number |
16_SMC-50-1-20/111_NE |
| OBJECT_ID |
1599136 |
