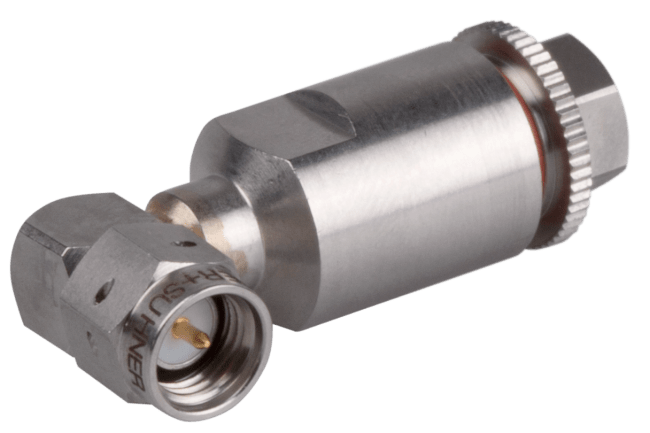

16_SMA-50-2-20/199_NE
Coaxial connector
|SMA, 50 Ohm, Right angle cable male
| Frequency min. Range2 | 6GHz |
| VSWR Range 2 | 1.35 |
| Return Loss Range2 | 16.5dB |
| Cable Entry Centre Contact | plugged |
| Cable Entry Outer Contact | clamped |
| Class | 1037 |
| Body Material | Stainless Steel |
| Frequency max. Range2 | 11GHz |
| Cable Group Connectors | U92 |
| Cable1 | EACON_2C |
| Centre Contact Material | Copper Beryllium Alloy |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Right angle cable plug |
| CONNECTOR SERIES | SMA |
| Coupling Nut Material | Stainless Steel |
| Dielectric Size | 2mm |
| Frequency max. Range1 | 6GHz |
| Frequency min. Range1 | 0GHz |
| Gasket Material | VMQ (Silicone rubber) |
| Gender | plug |
| ID | 16_SMA-50-2-20/199_N |
| Impedance | 50 |
| Insulator Material | PTFE (Polytetrafluoroethylene) |
| Interface Frequency max. | 11GHz |
| Interface Standards | SUHNER-SMA-26.5GHz |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 150°C |
| Operating Temperature min. | -40°C |
| Outer Contact Material | Stainless Steel |
| Packaging | Single |
| PATTERN CLASSES | 16 |
| Return Loss Range1 | 24.9dB |
| CONNECTOR SHAPE | right-angle |
| Type Number | 16_SMA-50-2-20/199_NE |
| VSWR Range 1 | 1.12 |
| OBJECT_ID | 6321557 |
