| Height |
88mm |
| Frequency min. 3 |
1710MHz |
| Frequency min. 4 |
2400MHz |
| Frequency min. 5 |
1574MHz |
| Frequency min. 2 |
790MHz |
| VSWR |
2, 2, 2, 2, 2.2 |
| Environment remarks |
ISO 16750:2010 environmental tests MIL-F-14072D low corrosion design E-Mark CE-Mark |
| Standards 1 |
Automotive ISO 16750 |
| Isolation |
12dB |
| Ambient temperature |
25°C |
| Radome Colour |
RAL 7043 (dark grey) |
| Transport Temperature min. |
-40°C |
| Accessory |
9091.99.0250 |
| Operation Temperature max. |
85°C |
| Configuration |
MiMo 2x2 |
| IP Rating |
IP68, IP69 |
| Depth |
208mm |
| Band 8 |
false, false, false, false, false, false |
| Foot notes |
This product can be customized within the order process. Available options are: Different radiator combinations Different cable pigtail length and RF connector types Fulfillment of fire safety standards EN 45545, DIN 5510 or ECE-R118 ...and more. Note: The antenna gain as indicated above will vary for a different cable length. For a gain calculation please consider the cable attenuation per meter for the respective frequency band. |
| Band 3 |
false, true, true, false, false, false |
| Weight |
0.5kg |
| Width |
83mm |
| Connector position |
bottom |
| Band 1 |
false, false, false, false, true, true |
| Band 6 |
false, false, false, false, false, false |
| Operating Temperature min. |
-40°C |
| Polarisation Port |
vertical, vertical |
| Transport Temperature max. |
85°C |
| Mechanical Remarks |
Mounting breakthroughØ30mm |
| Band 5 |
false, true, false, false, false, false |
| Notes |

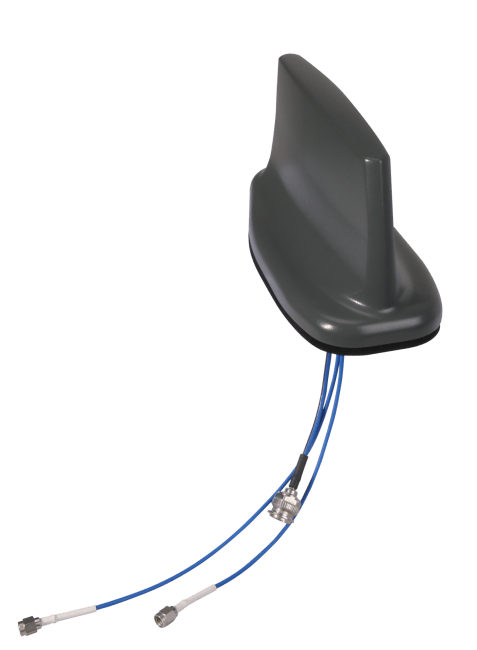

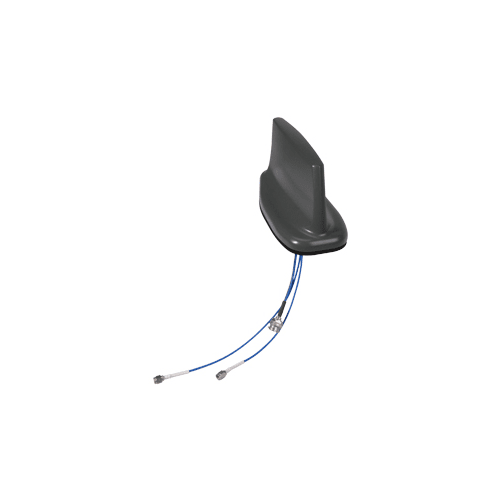

Rugged vehicle rooftop multi-band antenna for heavy duty vehicles like bus and truck. Supports 2G/3G/4G cellular bands in 2x2 MIMO configurations and GPS/Glonass. Single hole mounting, easy cabling feed-through. |
| Storage Temperature min. |
-40°C |
| Band 7 |
false, false, false, false, false, false |
| Connector type |
SMA, SMA |
| Composite power max. |
80W |
| Frequency1 |
690-960 |
| Product family |
SENCITY® Road MIMO |
| Radome |
ASA (acrylic ester-styrene-acrylonitrile) |
| Frequency max. 5 |
1610MHz |
| Frequency max. 4 |
2690MHz |
| Gain |
4dBi |
| Environment |
indoor/outdoor |
| Grounding |
false, false |
| Recycling Label |
false |
| Storage Temperature max. |
85°C |
| Impedance [Ω] |
50 |
| Connector gender |
plug (male), plug (male) |
| Band 4 |
false, false, true, true, false, false |
| Flammability rating |
ECE-R118 |
| Band 2 |
true, true, false, false, false, false |
| Mounting1 |
vehicle |
| Service1 |
Cellular (800, 850, 900 MHz) |
| 2002/96/EC (WEEE) |
no special marking needed |
| Class |
1367 |
| 2000/53/EC (ELV) |
compliant |
| Frequency max. 2 |
960MHz |
| Frequency max. 3 |
2170MHz |
| Description |
Sencity Road MIMO Antenna |
| Frequency max. 1 |
790MHz |
| Frequency min. 1 |
698MHz |
| ID |
1399.99.0129 |
| 2011/65/EC (RoHS) |
compliant |
| OBJECT_ID |
7255292 |
