| Height |
33.2mm |
| Frequency min. 3 |
3400MHz |
| Frequency min. 4 |
4900MHz |
| Frequency min. 2 |
2500MHz |
| VSWR |
1.5, 1.8, 1.8, 1.7 |
| Environment remarks |
Flamability: EN 45545-2 (2013) HL3, NFPA130 (2013) Environment: EN 50155 (2016) Cooling EN 60068-2-1 (2007), test Ad, -55°C, 8h Dry heat EN-60068-2-2 (2007), test Bb, +85°C, 8h Damp heat cyclic EN 60068-2-30, +25/55°C Temperature change EN 60068-2-14 (2008), -40/+85°C Salt mist EN 60068-2-11 (2008), 96h Mechanical vibration/shock/simulated lifetime: IEC 61373 (2010), § 9 and § 10, category 1B Hammer impact test: EN 60068-2-75 (1997), IEC 62262 (2002) IK10, test Ehc Corrosion: MIL-F-14072 E type 1 exposed |
| Isolation |
15dB |
| Ambient temperature |
25°C |
| Radome Colour |
RAL 7044 (grey) |
| Transport Temperature min. |
-45°C |
| Operation Temperature max. |
85°C |
| Configuration |
MiMo 4x4 |
| IP Rating |
IP68, IP69 |
| Band 8 |
false, false, false, false, false, false |
| Band 3 |
false, true, true, true, true, false |
| Weight |
0.92kg |
| Connector position |
bottom |
| Band 1 |
false, false, true, true, true, true |
| Band 6 |
false, false, false, false, false, false |
| Operating Temperature min. |
-45°C |
| Polarisation Port |
vertical, vertical |
| Transport Temperature max. |
85°C |
| Band 5 |
false, false, false, false, false, false |
| Notes |
Compact omni-directional 4x4 MIMO cabinet/ceiling mount antenna. Supports 4x4 WiFi MIMO in Wi-Fi 4 / Wi-Fi 6 bands. Supports 4x4 Cellular MIMO in 2.3 / 2.6 / 3.5 GHz bands. Rugged design, meets EN 50155 railway standard. Fire retardant acc. to EN 45545-2 and NFPA130. Single hole mounting. Cable length 1.5m. |
| Storage Temperature min. |
-45°C |
| Band 7 |
false, false, false, false, false, false |
| Connector type |
false, false |
| Composite power max. |
10W |
| Frequency1 |
2400-2500 |
| Product family |
SENCITY® Omni-SR |
| Radome |
PC (Polycarbonate) |
| Frequency max. 4 |
5975MHz |
| Gain |
1dBi |
| Environment |
indoor/outdoor |
| Grounding |
true, true |
| Recycling Label |
false |
| Storage Temperature max. |
85°C |
| Impedance [Ω] |
50 |
| Connector gender |
plug (male), plug (male) |
| Band 4 |
false, false, true, true, true, true |
| Flammability rating |
EN 45545-2 |
| Product is Lead-Free Soldered |
true |
| Band 2 |
true, true, false, false, true, true |
| Mounting1 |
vehicle |
| Service1 |
Cellular (2.3 GHz) |
| 2002/96/EC (WEEE) |
no special marking needed |
| Class |
1367 |
| Frequency max. 2 |
2690MHz |
| Frequency max. 3 |
3800MHz |
| Description |

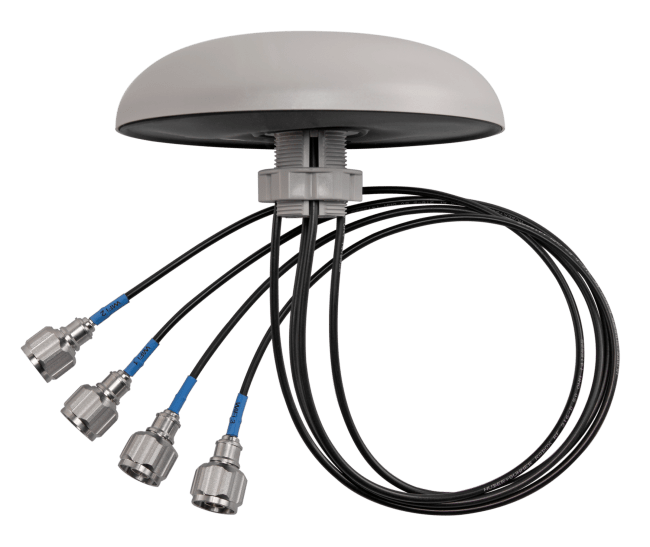

SENCITY® Omni-SR MIMO Antenna |
| Frequency max. 1 |
2500MHz |
| Frequency min. 1 |
2300MHz |
| ID |
1399.17.0246 |
| 2011/65/EC (RoHS) |
compliant |
| OBJECT_ID |
8154563 |
