| Height |
101mm |
| Frequency min. 2 |
4940MHz |
| Band 5 |
false, false, false, false, false, false |
| Halfp Beamwidth Vertical |
35° |
| Windload at Wind Speed |
160km/h |
| VSWR |
1.5, 1.5 |
| Notes |
Small directional, planar, linear vertical polarized WiFi antenna with 13.5 dBi gain 4.9 up to 5.3 GHz for public safety wireless-networks WLAN/WiFi IEEE 802.11 a/h for Japan, Israel Rugged design, meets EN 50155 and EN 50125-3 railway standards Fire retardant acc. to EN 45545-2 and NFPA130 For outdoor applications IP66 / 67 Wall mounting material included |
| Environment remarks |
FLAMMABILITY: EN 45545-2 (2013) HL3 and NFPA130 (2013), also BS 6853 and DIN 5510-2 ENVIRONMENT: EN 50155 (2016) and EN 50125-3 (2003), also EN 60068 related IP RATING: IP 66 / IP 67 (IEC 60529) SOLAR RADIATION: EN 50125-3:2004 §4.9, 1120 W/m² for 20h AIR PRESSURE: EN 50125-3:2004 §4.2, Altitude Class A1 (up to 1400m) AIR PULE PRESSURE: EN 50125-3:2004 §4.2, 1 kPa/s RAIN: EN 50125-3:2004 §4.6, delivery rate: 6 mm/min VIBRATION / SHOCK: EN 50125-3:2004 §4.13, position profile: outside the track POLLUTION: EN 50125-3:2004 §4.11, pollution levels: 4B1, 4S1 CORROSION: MIL-F-14072 E Type 1 exposed MECHANICAL IMPACT (HAMMER IMPACT): EN 60068-2-75 (IEC 62262/2002-02 IK06) |
| Storage Temperature min. |
-40°C |
| Standards 1 |
Railway EN 50155 |
| Standards 2 |
Railway EN 45545 |
| Band 7 |
false, false, false, false, false, false |
| Standards 3 |
Railway NFPA130 |
| Standards 4 |
Railway EN 50125 |
| Composite power max. |
30W |
| Frequency1 |
5100-6000 |
| Product family |
SENCITY® Spot-S |
| Ambient temperature |
25°C |
| Vertical Electrical Tilt |
0° |
| Radome Colour |
RAL 7044 (grey) |
| Front to Back Ratio |
20dB |
| Radome |
PC (Polycarbonate) |
| Transport Temperature min. |
-40°C |
| Accessory |
9091.99.0238, 9091.99.0237 |
| Wind Speed operational |
160km/h |
| Operation Temperature max. |
85°C |
| Gain |
13dBi |
| Environment |
indoor/outdoor |
| Configuration |
SiSo |
| Depth |
36mm |
| Band 8 |
false, false, false, false, false, false |
| Foot notes |
Following Declaration of Conformity for SENCITY Spot-S antennas are available on request: Industrial standards EN 60068 / EN 60529 / IEC 61373: Ref. DOC-0000318049 Railway rolling stock, environmental standards EN 50155 and fire behaviour EN 45545-2k, NFPA130: Ref. DOC-0000380375 Railway trackside, environmental standards EN 50125-3 and fire behaviour EN 45545-2: Ref. DOC-0000411396 |
| Frontal windload |
15N |
| Recycling Label |
true |
| Band 3 |
false, false, false, false, false, false |
| Weight |
0.11kg |
| Width |
81mm |
| Storage Temperature max. |
85°C |
| Impedance [Ω] |
50 |
| Connector position |
bottom |
| Connector gender |
jack (female) |
| Band 1 |
false, false, false, false, false, true |
| Band 4 |
false, false, false, false, false, false |
| Flammability rating |
EN 45545-2 |
| Band 6 |
false, false, false, false, false, false |
| Operating Temperature min. |
-40°C |
| Polarisation Port |
vertical |
| Transport Temperature max. |
85°C |
| Survival Wind Speed |
220km/h |
| Product is Lead-Free Soldered |
true |
| Band 2 |
true, false, false, false, false, false |
| Halfp Beamwidth Horizont |
40° |
| Included mounting material |
Wall mounting material |
| Mounting1 |
fixed |
| Service1 |
Wi-Fi 5 (5.1-5.8, GHz) |
| 2002/96/EC (WEEE) |
special marking needed |
| Class |
1367 |
| Frequency max. 2 |
5350MHz |
| Connector type |
false |
| Description |

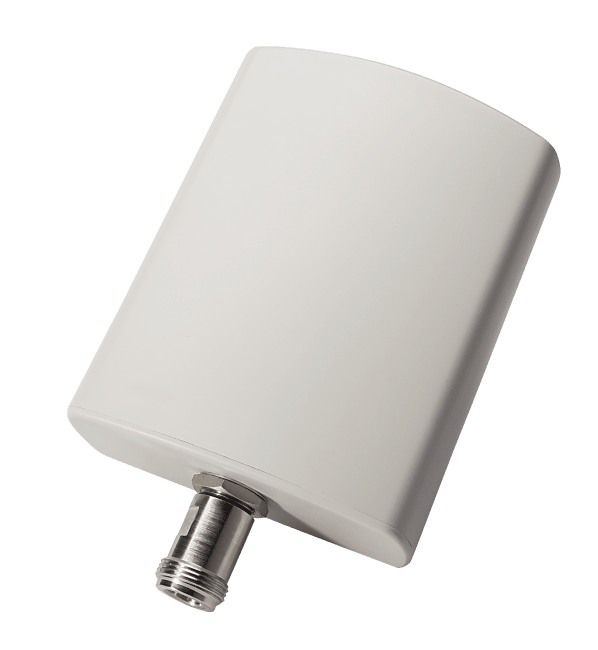

SENCITY® Spot-S WiFi Antenna |
| Frequency max. 1 |
4940MHz |
| Frequency min. 1 |
4900MHz |
| ID |
1351.17.0001 |
| 2011/65/EC (RoHS) |
compliant |
| OBJECT_ID |
7252906 |
