12-12G50/W(ZNG)Y-Z120

Produktnummer: 22523655
Huber Suhner
Lagerbeholdning:

Mechanical Thermal Properies Increased tensile strength
Water penetr Standard IEC 60794-1-2 F5B
Impact Standard IEC 60794-1-2 E4
Stripping Ripcord for easy jacked removal
Tension Test Standard IEC 60794-1-2 E1
Strain Reliefed Armouring Rodent-protected, glass-armoured
Wavelength for singlemode at 1550nm, for multimode at 1300nm
Layer Type 2 Ripcords
Temperature Standard IEC 60794-1-2 F1
Crush Test Standard IEC 60794-1-2 E3
Installation High chemical resistance against acids/alkalies
Other Properties Longitudinal and transversal watertight cable
Other Properties2 For Masterline application
Class 1032
Application For use in ducts and in unprotected environment
Cable Type Metal free indoor and outdoor cable

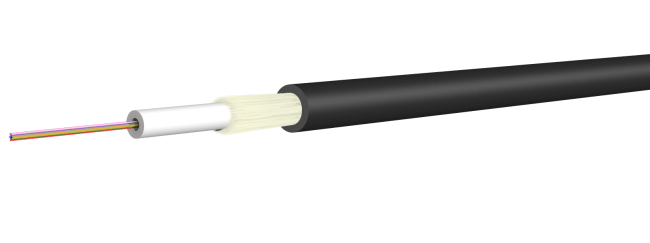

Cable Description Multi-fiber Loose Tube Cable
Outer Jacket Type Outer jacket with two orange stripes / LD-PE
Outer Jacket Ø 12mm
Reinforcement Type Reinforcement / glass-roving
Number of max. Fibres 12
Tube Type Multi-fiber loose tube up to 12 fibers
Fire behavior Halogen free and non-corrosive fire gases
ID 12-.../W(ZNG)Y-...120
OBJECT_ID 3080144
