11_PC185-50-2-6/19-_NE

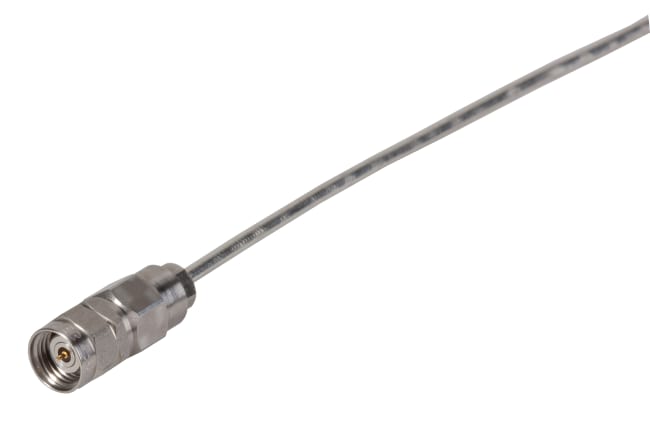

Coaxial connector
PC 1.85, 50 Ohm, Straight cable male
| H+S | |
|---|---|
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Interface type | PC 1.85 |
| Operation temperature | -55 °C ... 125 °C |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Suitable cables | SUCOFORM_86 |
| Coupling nut | Stainless Steel / Passivated (Plating) |
| Outer conductor | Stainless Steel / Passivated (Plating) |
| Product code | 11_PC185-50-2-6/19-_NE |
| Insulator | LCP (Liquid crystal polymer) |
| Centre contact | Copper Beryllium Alloy / SUCOPRO / Gold Plating |
| Interface frequency | 67 GHz |
| Details | CAS: 7439-92-1 Lead |
| Available as assembly only | No |
| Cable group | Y16 , Y16 - 2 mm / 50 Ohm |
| Body | Stainless Steel / Passivated (Plating) |
| Cable entry centre contact | plugged |
| Standard | IEC 61169-32 |
| Mating cycles | 500 |
| Impedance | 50 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
| Exemptions | 6c |
| Cable entry outer contact | soldered |
| Gender | plug |
