Produktnummer: 84146528
Huber Suhner

Outer Jacket Width 3mm
Impact Standard IEC 60794-1-2 E4
Stripping Tube can be stripped up to 1m in one piece
Tension Test Standard IEC 60794-1-2 E1
Strain Reliefed Armouring Each fiber strain relieved
Wavelength for singlemode at 1550nm, for multimode at 1300nm
Temperature Standard IEC 60794-1-2 F1
Crush Test Standard IEC 60794-1-2 E3
Installation Tight bending radii
Trademark LSFH
Class 1032
Application For direct connector assembly with strain relief
Cable Type Metal free indoor cable

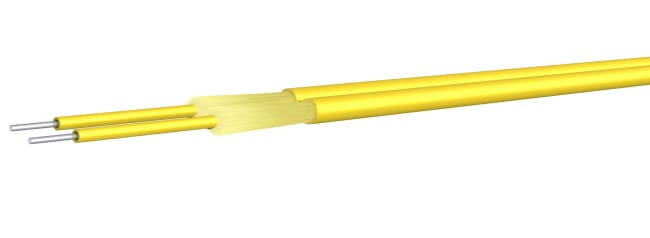

Cable Description Duplex Cable Figure 8
Outer Jacket Type Outer jacket / PE flame retardant (LSFH)
Outer Jacket Ø 1.4mm
Reinforcement Type Reinforcement / aramide yarn
Number of max. Fibres 2
Tube Type Semi-tight tube
Fire behavior Halogen free and non-corrosive fire gases
ID 02-.../VJH-...14
OBJECT_ID 4438741
