81_MCX-50-0-6/111_NH

Produktnummer: 23005296
Huber Suhner
Lagerbeholdning:

Height above PCB HA 11.2mm
Number of Printlegs 4
Printleg Length HL 1.8mm
Weight 0.0009kg
Engangement Force max. 25N
Height of Stand Off HS 3.4mm
Disengagement Force max. 20N
Disengagement Force min. 8N
Board Mounting Type through holes
External Remarks PCB connector with stand-offs
2002/96/EC (WEEE) no special marking needed
Class 1183
2006/1907/EC (REACH) compliant
Body Material Brass
Body Plating Gold Plating (Nickel underplated)
Centre Contact Material Brass
Centre Contact Plating Gold Plating (Nickel underplated)

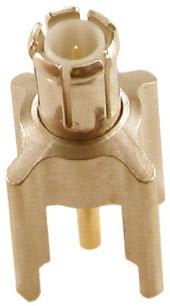

Connector Description Straight PCB plug
CONNECTOR SERIES MCX
Gender plug
Highlight1 PCB connector with stand-offs
ID 81_MCX-50-0-6/111_N
Impedance 50
Insulator Material PFA / PTFE
Interface Frequency max. 6GHz
Interface Standards IEC 60169-36_CECC 22220
Junction none
2011/65/EC (RoHS) compliant
Mounting pcb
Number of Matings 500
Operating Temperature max. 155°C
Operating Temperature min. -55°C
Outer Contact Material Brass
Outer Contact Plating Gold Plating (Nickel underplated)
Packaging Bulk 100 pcs
PATTERN CLASSES 81
CONNECTOR SHAPE straight
Type Number 81_MCX-50-0-6/111_NH
OBJECT_ID 3018916
