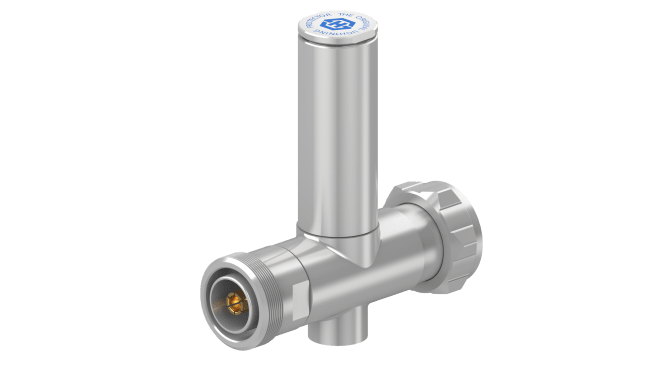

3407.41.0038

Produktnummer: 23037377
Huber Suhner
Lagerbeholdning:

H+S
Moisture resistance according MIL-STD-202, Method 106
Vibration according MIL-STD-202, Method 204, Cond. A
bre.att-ter-frequency-range-max 512
bre.att-ter-frequency-range-min 380
Storage temperature -40 °C ... 85 °C
Residual pulse energy (typ.) 0.03 µJ LEMP (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs)120 µJ NEMP (test pulse 6 kV 5/200 ns)
Thermal shock according MIL-STD-202, Method 107, Cond. B
Insertion loss typical ≤ 0.2 dB
Product code 3407.41.0038
Main path connectors Port 1: unprotected, 7/16 plug (male)Port 2: protected, 7/16 jack (female)
Housing material / plating Brass / SUCOPLATE (R) Plating
Ingress protection (IP Rating) Mated / IP65, according to IEC 60529
Mounting and grounding M8 (screw), brk (bracket)
Residual pulse voltage (typ.) 455 V NEMP (test pulse 6 kV 5/200 ns)
Return loss typical ≥ 20 dB
Surge current handling capability 80 kA multiple (test pulse 8/20 µs)
Center contact, material / plating Port 1: Brass / Silver PlatingPort 2: Copper Beryllium Alloy / Silver Plating
EMP can be install reversed YES
Weight 430 g
Exemptions 6c
Gas tube No DC / shorted QW or LC
Directive RoHS 2011/65/EU and (EU) 2015/863
Impedance 50 Ω
Operation temperature -40 °C ... 85 °C
Rating Compliant with exemption
Product description Quarter-wave stub technology with integrated high-pass filter
Frequency frame 380 MHz to 512 MHz
CW power frame 500
