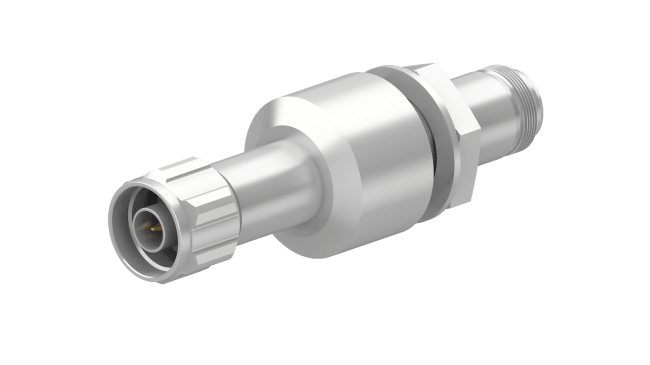

3407.17.0085
| H+S | |
|---|---|
| Side of bulkhead | protected side |
| Moisture resistance according | MIL-STD-202, Method 106 |
| Vibration according | MIL-STD-202, Method 204, Cond. A |
| bre.att-ter-frequency-range-max | 6000 |
| bre.att-ter-frequency-range-min | 2000 |
| Storage temperature | -40 °C ... 85 °C |
| Residual pulse energy (typ.) | 0.1 nJ LEMP (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs)20 nJ (test pulse 55 kA 8/20 µs) |
| Thermal shock according | MIL-STD-202, Method 107, Cond. B |
| Insertion loss typical | ≤ 0.2 dB |
| Product code | 3407.17.0085 |
| Main path connectors | Port 1: unprotected, N plug (male)Port 2: protected, N jack (female) |
| Housing material / plating | Aluminium / Chromatized |
| Ingress protection (IP Rating) | Mated / IP68, according to IEC 60529 |
| Details | CAS: 7439-92-1 Lead |
| Mounting and grounding | MH170 (bulkhead mounting), brk (bracket) |
| Residual pulse voltage (typ.) | 0.5 V LEMP (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs)5 V (test pulse 55 kA 8/20 µs) |
| Return loss typical | ≥ 20 dB |
| Surge current handling capability | 50 kA multiple (test pulse 8/20 µs) |
| Center contact, material / plating | Port 1: Brass / Gold Plating (without Nickel underplating)Port 2: Copper Beryllium Alloy / Gold Plating (without Nickel underplating) |
| EMP can be install reversed | YES |
| Mating cycles | 100 |
| Inline design | YES |
| Weight | 108 g |
| Exemptions | 6c |
| Gas tube | No DC / shorted QW or LC |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Impedance | 50 Ω |
| Operation temperature | -40 °C ... 85 °C |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Product description | Quarter-wave stub technology with integrated high-pass filter |
| Frequency frame | 2000 MHz to 6000 MHz |
| Regulation | REACH 1907/2006 Article 33 SVHC |
| CW power frame | 300 |
