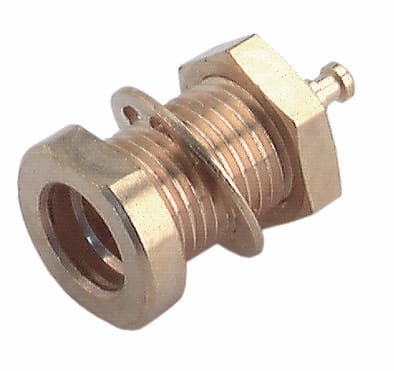

22_MMCX-50-0-1/111_OH
Coaxial connector
|MMCX, 50 Ohm, Straight bulkhead receptacle, female
| Flange Type | round flange |
| Fastening Nut Plating | Gold Plating (without Nickel underplating) |
| Fastening Nut | Brass |
| Terminal Dimension D1 | 1mm |
| Panel Thickness | 2.5mm |
| Terminal Dimension L1 | 1.4mm |
| Engangement Force max. | 15N |
| Tab Style | special |
| Disengagement Force max. | 15N |
| Washer | Bronze |
| Flange Dimension | dia. 5 |
| Washer Plating | Gold Plating (without Nickel underplating) |
| Disengagement Force min. | 6N |
| Weight | 0.0008kg |
| 2002/96/EC (WEEE) | no special marking needed |
| Class | 1182 |
| 2006/1907/EC (REACH) | compliant |
| Body | Brass |
| Body Plating | Gold Plating (without Nickel underplating) |
| Centre Contact | Copper Beryllium Alloy |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Straight bulkhead receptacle jack |
| CONNECTOR SERIES | MMCX |
| Gender | jack |
| Highlight1 | Front mount chassis connector |
| ID | 22_MMCX-50-0-1/111_O |
| Impedance | 50 |
| Insulator | PFA / PTFE |
| Interface Frequency max. | 6GHz |
| Interface Standards | SUHNER-MMCX |
| Junction | receptacle |
| 2011/65/EC (RoHS) | compliant |
| Mounting | bulkhead |
| Number of Matings | 500 |
| Operating Temperature max. | 155°C |
| Operating Temperature min. | -55°C |
| Outer Contact | Brass |
| Outer Contact Plating | Gold Plating (without Nickel underplating) |
| Packaging | Bulk 100 pcs |
| PATTERN CLASSES | 22 |
| CONNECTOR SHAPE | straight |
| Type Number | 22_MMCX-50-0-1/111_OH |
| OBJECT_ID | 3068375 |
