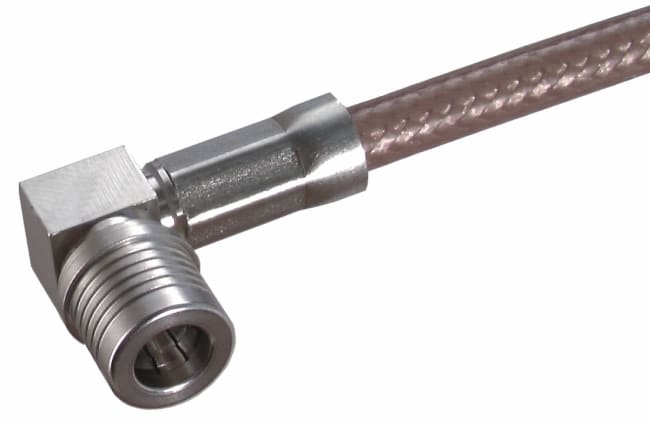

16_QMA-50-3-2/133_NH
Coaxial connector
|QMA, 50 Ohm, Right angle cable male
| Cable Entry Centre Contact | soldered |
| Cable Entry Outer Contact | crimped |
| Class | 1037 |
| Body Material | Brass |
| Body Plating | SUCOPLATE (R) Plating |
| Cable Group Connectors | U7 |
| Cable1 | RG_58_C/U |
| Cable2 | G_03232 |
| Cable3 | GX_03272 |
| Cable5 | GX_03272-04 |
| Centre Contact Material | Brass |
| Centre Contact Plating | SUCOPRO Plating |
| Connector Description | Right angle cable plug |
| CONNECTOR SERIES | QMA |
| Crimp Ferrule Material | Copper |
| Crimp Ferrule Plating | SUCOPLATE (R) Plating |
| Dielectric Size | 3mm |
| Frequency max. Range1 | 1GHz |
| Frequency min. Range1 | 0GHz |
| Gender | plug |
| Highlight1 | QuickLock Interface |
| ID | 16_QMA-50-3-2/133_N |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 18GHz |
| Interface Standards | QMA QLF compliant |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 100 |
| Operating Temperature max. | 85°C |
| Operating Temperature min. | -40°C |
| Outer Contact Material | Bronze |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| Packaging | Bulk 100 pcs |
| PATTERN CLASSES | 16 |
| Return Loss Range1 | 32dB |
| Weight | 0.0081kg |
| CONNECTOR SHAPE | right-angle |
| Type Number | 16_QMA-50-3-2/133_NH |
| VSWR Range 1 | 0.051 |
| OBJECT_ID | 1604302 |
