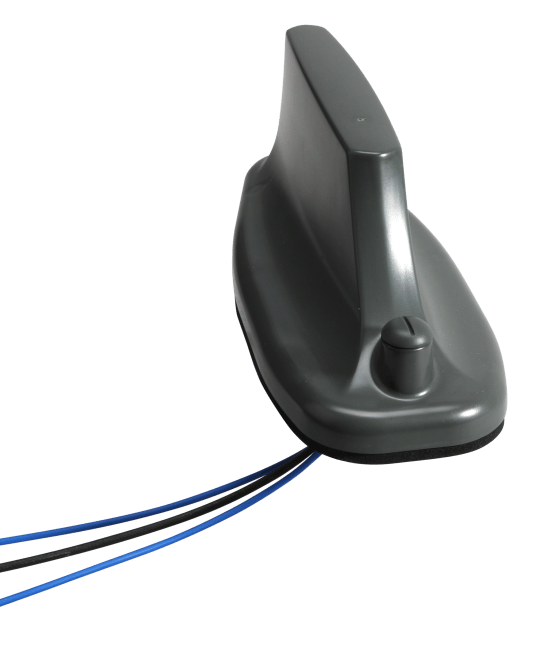

1399.99.0128
H+S | |
---|---|
Radome material | ASA (acrylic ester-styrene-acrylonitrile) |
Ingress protection (IP Rating) | Mated / IP68, IP69 |
Dimensions | 82 mm x 83 mm x 208 mm (Height x Width x Depth) |
Environment (application) | Indoor/Outdoor |
Back plate/base plate material | Aluminium |
Remarks | For further information please refer to data sheet. |
Transport temperature | -40 °C ... 85 °C |
Radome colour | RAL 7043 (dark grey) |
Solar radiation | DIN 75220 |
Bands | 2400 MHz ... 2690 MHz, VSWR 1.8, Gain 6 dBi4900 MHz ... 5935 MHz, VSWR 1.8, Gain 7 dBi |
Flammability rating | ECE-R118 |
Storage temperature | -40 °C ... 85 °C |
Operation temperature | -40 °C ... 85 °C |
Product code | 1399.99.0128 |
Weight | 0.41 kg |
