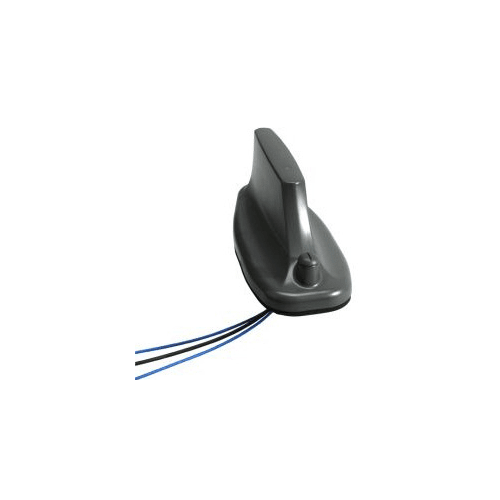

1399.99.0128
| H+S | |
|---|---|
| Radome material | ASA (acrylic ester-styrene-acrylonitrile) |
| Ingress protection (IP Rating) | Mated / IP68, IP69 |
| Dimensions | 82 mm x 83 mm x 208 mm (Height x Width x Depth) |
| Environment (application) | Indoor/Outdoor |
| Back plate/base plate material | Aluminium |
| Remarks | For further information please refer to data sheet. |
| Transport temperature | -40 °C ... 85 °C |
| Radome colour | RAL 7043 (dark grey) |
| Solar radiation | DIN 75220 |
| Bands | 2400 MHz ... 2690 MHz, VSWR 1.8, Gain 6 dBi4900 MHz ... 5935 MHz, VSWR 1.8, Gain 7 dBi |
| Flammability rating | ECE-R118 |
| Storage temperature | -40 °C ... 85 °C |
| Operation temperature | -40 °C ... 85 °C |
| Product code | 1399.99.0128 |
| Weight | 0.41 kg |
