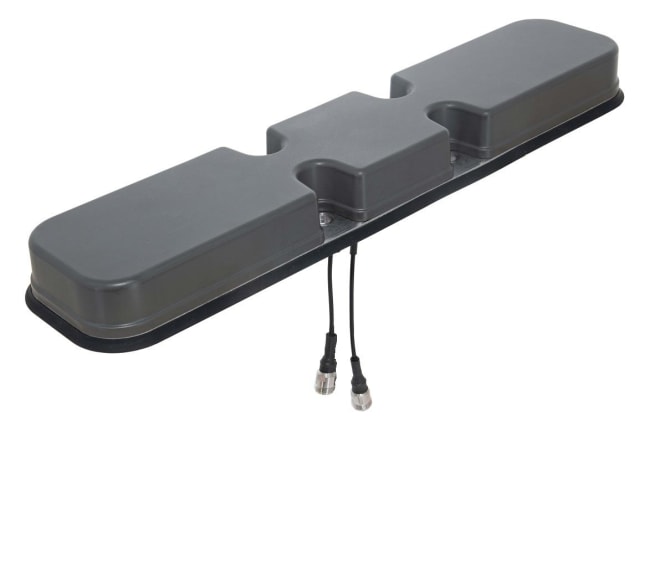

1399.17.0145
H+S | |
---|---|
Radome material | PC (Polycarbonate) |
Ingress protection (IP Rating) | IP69 |
Dimensions | 40 mm x 108 mm x 474 mm (Height x Width x Depth) |
Windload | Wind Speed survival: 500 km/h |
Environment (application) | Indoor/Outdoor |
Back plate/base plate material | Aluminum |
Remarks | For further information please refer to data sheet. , Indicated VSWR and gain values are valid for a metallic ground plane of 0.5 x 1 m or larger. , High-voltage-protection: no voltage on RF port, if catenary line touches antenna (EN 50124-1, 3.8 kVDC, 27.5 kVAC)High-current-protection: Designed acc. to UIC 533, DC-grounded antenna element (protection against lightning and short circuit with catenary lines(40kA/0.125s).Corrosion: Low corrosion design acc. to MIL-F-14072(E).Mounting: Shall be installed in longitudinal position to the wind/driving direction. 4x composite sealing washers included for silicone-free sealing of the mounting screws. |
Radome colour | RAL 7043 (dark grey) |
Antenna configuration | MiMo 2x2 |
Solar radiation | UL 746C, F1 |
Bands | 694 MHz ... 960 MHz, VSWR 1.8, Gain 5 dBi1350 MHz ... 1450 MHz, VSWR 1.9, Gain 7 dBi1450 MHz ... 2700 MHz, VSWR 1.6, Gain 6.5 dBi3300 MHz ... 4900 MHz, VSWR 1.8, Gain 7.5 dBi4900 MHz ... 5150 MHz, VSWR 1.8, Gain 9 dBi5150 MHz ... 7125 MHz, VSWR 1.8, Gain 8 dBi |
Antenna family | SENCITY® Rail Low Profile |
Back plate/base plate plating | Passivated (Plating) |
Storage temperature | -55 °C ... 85 °C |
Standards | Railway EN 50155Railway EN 45545Railway NFPA130 |
Back plate/base plate colour | Grey |
Product code | 1399.17.0145 |
Weight | 1.3 kg |
Flammability rating | EN 45545-2 |
Operation temperature | -55 °C ... 85 °C |
