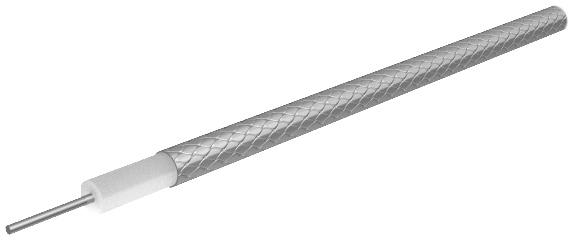

SUCOFORM_86_CT
H+S | |
---|---|
Insulation resistance | 100000000 MΩ*m |
Operation temperature | -65 °C ... 200 °C |
Fire characteristics | contains halogene |
Velocity of signal propagation | 80 % |
Weight | approx. 16 g/m |
Outer conductor resistance | 39 Ω/km |
Signal delay | 4.2 ns/m |
Phaase vs bending | 5 °/GHz |
Screening effectiveness | 100 dB at frequency 0.1 GHz ... 18GHz |
Product code | SUCOFORM_86_CT |
Operating Voltage (at sea level) | ≤ 0.34 kVrms |
Static bending radius | ≥ 6 mm |
Cable family | Sucoform: Formstable, hand-formable alternatives to semi-rigid microwave cables |
Available as assembly only | No |
Operating frequency | ≤ 40 GHz |
Cable group | Y20 |
Capacitance | 83.5 pF/m |
Phase vs temperature | 400 ppm within the temperature range -55 ... 125 °C |
Test voltage (50 Hz/1 min) | ≤ 0.75 kVrms |
Installation temperature | -20 °C ... 60 °C |
Impedance | 50 Ω +/-2Ω |
Dynamic bending radius | < 20 mm |
