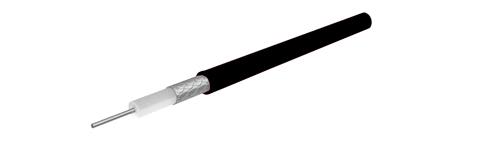

SUCOFORM_47_CU_LSFH
| H+S | |
|---|---|
| Operating Voltage (at sea level) | ≤ 1 kVrms |
| Static bending radius | ≥ 4 mm |
| Cable family | Sucoform: Formstable, hand-formable alternatives to semi-rigid microwave cables |
| Available as assembly only | No |
| Operating frequency | ≤ 40 GHz |
| Cable group | Y2 |
| Insulation resistance | 100000000 MΩ*m |
| Capacitance | 95 pF/m |
| Operation temperature | -40 °C ... 85 °C |
| Fire characteristics | contains halogene |
| Velocity of signal propagation | 71 % |
| Weight | approx. 7.5 g/m |
| Test voltage (50 Hz/1 min) | ≤ 2 kVrms |
| Installation temperature | -20 °C ... 60 °C |
| Impedance | 50 Ω +/-2Ω |
| Signal delay | 4.7 ns/m |
| Screening effectiveness | 100 dB at frequency 0.1 GHz ... 18GHz |
| Product code | SUCOFORM_47_CU_LSFH |
