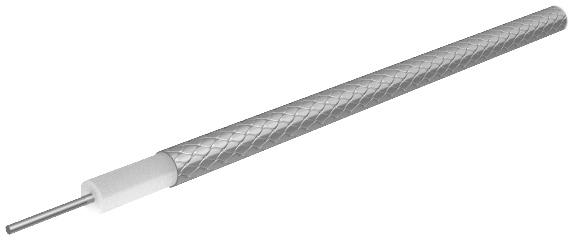

SUCOFORM_47_CU

Produktnummer: 23033515
Huber Suhner
Lagerbeholdning:

H+S
Insulation resistance 100000000 MΩ*m
Operation temperature -65 °C ... 165 °C
Fire characteristics contains halogene
Velocity of signal propagation 71 %
Weight approx. 5.5 g/m
Signal delay 4.7 ns/m
Screening effectiveness 100 dB at frequency 0.1 GHz ... 18GHz
Product code SUCOFORM_47_CU
Operating Voltage (at sea level) ≤ 1 kVrms
Static bending radius ≥ 3.18 mm
Cable family Sucoform: Formstable, hand-formable alternatives to semi-rigid microwave cables
Available as assembly only No
Operating frequency ≤ 40 GHz
Cable group Y2
Capacitance 95 pF/m
Test voltage (50 Hz/1 min) ≤ 2 kVrms
Installation temperature -20 °C ... 60 °C
Impedance 50 Ω +/-2Ω
