Verified for Lead-Free Soldering |
true |
Installation Temperature max. |
60°C |
Operating Temperature min. |
-65°C |
Attenuation Coefficient b max. |
0.034 |
Epsilon r |
1.99 |
Attenuation Coefficient b |
0.031 |
Attenuation Coefficient a |
0.21 |
Attenuation Coefficient a max. |
0.231 |
Calculated Power |
false |
Centre Conductor Diameter |
1.67mm |
Centre Conductor Material |
Copper, Silver plated |
Inner Cond Res DC |
8Ohm/km, 8.16Ohm/km |
Installation Temperature min. |
-20°C |
Operating Temperature max. |
165°C |
Outer Conductor 2 Description |
Outer conductor |
Outer Conductor 3 Description |
Outer conductor |
Outer Conductor 4 Description |
Outer conductor |
Screen Frequency max. |
18GHz |
Screen Frequency min. |
0.1GHz |
Outer Cond Resistance DC |
25Ohm/km, 25Ohm/km |
Outer Cond1 Coverage |
100% |
Outer Conductor1 Diameter |
6.3mm |
Outer Conductor1 Material |
Copper, Tin plated |
2002/96/EC (WEEE) |
no special marking needed |
Class |
1148 |
2006/1907/EC (REACH) |
compliant |
2000/53/EC (ELV) |
compliant |
Alternative Cable |
SUCOFROM_250-01_FEP |
Armoring 1 Description |
Armor |
Armoring 2 Description |
Armor |
Armoring 3 Description |
Armor |
Armoring 4 Description |
Armor |
Cable Category |
Formable microwave cable |
Cable Family |
Sucoform: Formstabe, hand-formable alternatives to semi-rigid microwave cables |
Kabelgruppe - Kabel |
Y14 |
Calc IL/Power up to Freq |
17MHz |
Capacitance |
95pF/m |
Centre Conductor Design |
Wire |
CW Power |
920W |
CW Power Frequency |
1GHz |
Description |

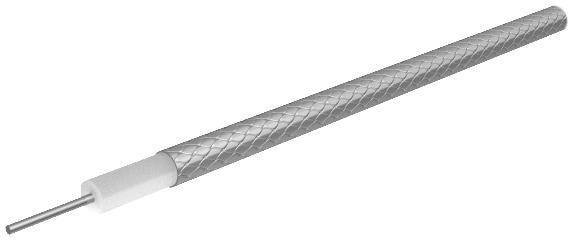

RG401 dimension, 50 Ohm, 18 GHz, 165°C, ø6.3 mm, no jacket |
Dielectric Diameter |
5.24mm |
Dielectric Material |
PTFE (Polytetrafluoroethylene) |
Distribution txt |
Hand formable, RG401 dimension, 50 Ohm, 18 GHz, 165°C, ø6.3 mm, no jacket |
Fire Test a |
IEC 60332-1 |
Fire Test b |
UL 1581 § 1080 (VW-1) |
Halogen Free |
false |
ID |
SUCOFORM_250-01 |
Impedance |
50Ohm |
Impedance Tolerance ± |
2Ohm |
Insulation Resistance |
100000000MOhm/m |
2011/65/EC (RoHS) |
compliant |
Number of Screens |
1 |
Only as Assembly |
false |
Operating Frequency |
18GHz |
Operating Voltage |
3.5kV |
Outer Conductor1 Design |
Tin soaked braid |
Print on Jacket |
HUBER+SUHNER SUCOFORM 250-01 50 Ohm (PA no.) |
Propagation Velocity |
71% of c |
Repeated Bend Radius |
120mm |
Weight |
12.5kg/100m |
Screen Effectiveness |
100dB |
Signal Delay |
4.7ns/m |
Static Bend Radius |
30mm |
Test Voltage |
7.5kV |
OBJECT_ID |
6425675 |
