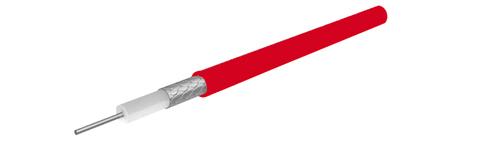

SUCOFORM_141_FEP

Produktnummer: 22511944
Huber Suhner
Lagerbeholdning:

Verified for Lead-Free Soldering 1
Installation Temperature max. 60 °C
Operating Temperature min. -65 °C
Attenuation Coefficient b max. 0.0444
Epsilon r 1.99
Attenuation Coefficient b 0.04
Attenuation Coefficient a 0.355
Attenuation Coefficient a max. 0.39
Calculated Power N
Centre Conductor Diameter 0.94 mm
Centre Conductor Material Steel, Copper+Silver plated
Inner Cond Res DC 64 Ohm/km
Installation Temperature min. -20 °C
Operating Temperature max. 165 °C
Outer Conductor 2 Description Outer conductor
Outer Conductor 3 Description Outer conductor
Outer Conductor 4 Description Outer conductor
Screen Frequency max. 18 GHz
Screen Frequency min. 0.1 GHz
Outer Cond Resistance DC 18 Ohm/km, 18 Ohm/km
Outer Cond1 Coverage 100 %
Outer Conductor1 Diameter 3.58 mm
Outer Conductor1 Material Copper, Tin plated
2002/96/EC (WEEE) no special marking needed
Class 1148
2006/1907/EC (REACH) compliant
2000/53/EC (ELV) compliant
Alternative Cable SUCOFORM_141_Cu_FEP
Armoring 1 Description Armor
Armoring 2 Description Armor
Armoring 3 Description Armor
Armoring 4 Description Armor
Cable Category Formable microwave cable
Cable Family Sucoform: Formstabe, hand-formable alternatives to semi-rigid microwave cables
CABLE GROUP Y12
Calc IL/Power up to Freq 17 MHz
Capacitance 92 pF/m
Centre Conductor Design Wire
CW Power 560 W
CW Power Frequency 1 GHz
Description RG402 dimension, 50 Ohm, 33 GHz, 165°C, ø4.1 mm, FEP jacket
Dielectric Diameter 2.95 mm
Dielectric Material PTFE (Polytetrafluoroethylene)
Distribution txt Hand formable, RG402 dimension, 50 Ohm, 33 GHz, 165°C, ø4.1 mm, FEP jacket
Fire Test a IEC 60332-1
Fire Test b UL 1581 § 1080 (VW-1)
Halogen Free N
ID SUCOFORM_141_FEP
Impedance 50 Ohm
Impedance Tolerance ± 2 Ohm
Insulation Resistance 100000000 MOhm/m
Jacket Colour RAL 3027 - rd
Jacket Diameter 4.1 mm
Jacket Material FEP (Fluorinated ethylene propylene)
Jacket Tolerance 0.1 mm
2011/65/EC (RoHS) compliant
Number of Cycles 50
Number of Screens 1
Only as Assembly N
Operating Frequency 33 GHz
Operating Voltage 1.9 kV
Outer Conductor1 Design Tin soaked braid
Print on Jacket HUBER+SUHNER SUCOFORM 141 FEP 50 Ohm (PA no.)
Propagation Velocity 71 % of c
Repeated Bend Radius 40 mm
Weight 4.7 kg/100m
Screen Effectiveness 100 dB
Signal Delay 4.7 ns/m
Static Bend Radius 8 mm
Test Voltage 5 kV
