| Verified for Lead-Free Soldering |
true |
| Installation Temperature max. |
60°C |
| Operating Temperature min. |
-65°C |
| Attenuation Coefficient b max. |
0.0352 |
| Epsilon r |
1.55 |
| Attenuation Coefficient b |
0.032 |
| Attenuation Coefficient a |
0.317 |
| Attenuation Coefficient a max. |
0.341 |
| Calculated Power |
false |
| Centre Conductor Diameter |
1.15mm |
| Centre Conductor Material |
Aluminium, Copper cladded, Silver plated |
| Installation Temperature min. |
-20°C |
| Operating Temperature max. |
200°C |
| Outer Conductor 2 Description |
Outer conductor |
| Outer Conductor 3 Description |
Outer conductor |
| Outer Conductor 4 Description |
Outer conductor |
| Screen Frequency max. |
18GHz |
| Screen Frequency min. |
0.01GHz |
| Outer Cond1 Coverage |
99% |
| Outer Conductor1 Diameter |
3.58mm |
| Outer Conductor1 Material |
Copper, Tin plated |
| Phase vs Temperature Ratio |
500ppm |
| 2002/96/EC (WEEE) |
no special marking needed |
| Class |
1148 |
| 2006/1907/EC (REACH) |
compliant |
| 2000/53/EC (ELV) |
compliant |
| Alternative Cable |
SUCOFORM_141_Cu |
| Armoring 1 Description |
Armor |
| Armoring 2 Description |
Armor |
| Armoring 3 Description |
Armor |
| Armoring 4 Description |
Armor |
| Cable Category |
Formable microwave cable |
| Cable Family |
Sucoform: Formstable, hand-formable alternatives to semi-rigid microwave cables |
| Kabelgruppe - Kabel |
Y25 |
| Calc IL/Power up to Freq |
17MHz |
| Capacitance |
80pF/m |
| Centre Conductor Design |
Wire |
| CW Power |
360W |
| CW Power Frequency |
1GHz |
| Description |

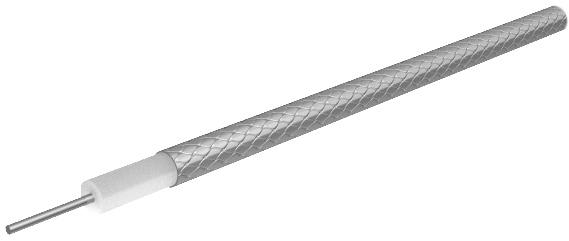

RG402 dimension, phase stable over temperature, 50 Ohm, 30 GHz, 200°C, ø3.58 mm, no jacket |
| Dielectric Diameter |
2.95mm |
| Dielectric Material |
Low density fluorine polymer |
| Distribution txt |
Hand formable, RG402 dimension, phase stable over temperature, 50 Ohm, 30 GHz, 200°C, ø3.58 mm, no jacket |
| Dynamic Bend Radius |
40mm |
| Halogen Free |
false |
| ID |
SUCOFORM_141_CT |
| Impedance |
50Ohm |
| Impedance Tolerance ± |
2Ohm |
| Inner Cond Res DC |
65Ohm/km |
| Insulation Resistance |
10000000MOhm/m |
| Jacket Diameter |
3.58mm |
| 2011/65/EC (RoHS) |
compliant |
| Number of Screens |
1 |
| Only as Assembly |
false |
| Operating Frequency |
30GHz |
| Operating Voltage |
0.5kV |
| Outer Cond Resistance DC |
18Ohm/km |
| Outer Conductor1 Design |
Tin soaked braid |
| Phase Temperature max. |
125°C |
| Phase Temperature min. |
-55°C |
| Print on Jacket |
HUBER+SUHNER SUCOFORM 141 CT 50 Ohm (PA no.) |
| Propagation Velocity |
83% of c |
| Weight |
3.3kg/100m |
| Screen Effectiveness |
100dB |
| Signal Delay |
4ns/m |
| Static Bend Radius |
8mm |
| Test Voltage |
1.1kV |
| OBJECT_ID |
7064527 |
