| Verified for Lead-Free Soldering |
1 |
| Installation Temperature max. |
60 °C |
| Operating Temperature min. |
-40 °C |
| Attenuation Coefficient b max. |
0.0476 |
| Epsilon r |
2.07 |
| Attenuation Coefficient b |
0.03967 |
| Attenuation Coefficient a |
0.58454 |
| Attenuation Coefficient a max. |
0.70145 |
| Calculated Power |
N |
| Centre Conductor Diameter |
0.51 mm |
| Centre Conductor Material |
Steel, Copper+Silver plated |
| Installation Temperature min. |
-20 °C |
| Operating Temperature max. |
125 °C |
| Outer Conductor 2 Description |
Outer conductor |
| Outer Conductor 3 Description |
Outer conductor |
| Outer Conductor 4 Description |
Outer conductor |
| Screen Frequency max. |
20 GHz |
| Screen Frequency min. |
0.1 GHz |
| Outer Cond1 Coverage |
100 % |
| Outer Conductor1 Diameter |
2.2 mm |
| Outer Conductor1 Material |
Copper, Tin plated |
| 2002/96/EC (WEEE) |
no special marking needed |
| Class |
1148 |
| 2006/1907/EC (REACH) |
compliant |
| 2000/53/EC (ELV) |
compliant |
| Alternative Cable |
EZ_86_AL_TP_M17 |
| Armoring 1 Description |
Armor |
| Armoring 2 Description |
Armor |
| Armoring 3 Description |
Armor |
| Armoring 4 Description |
Armor |
| Cable Category |
Formable microwave cable |
| Cable Family |
Semi-rigid: Semi-rigid, formable microwave cables |
| CABLE GROUP Cable |
Y3 |
| Calc IL/Power up to Freq |
17 MHz |
| Capacitance |
105 pF/m |
| Centre Conductor Design |
Wire |
| CW Power |
130 W |
| CW Power Frequency |
1 GHz |

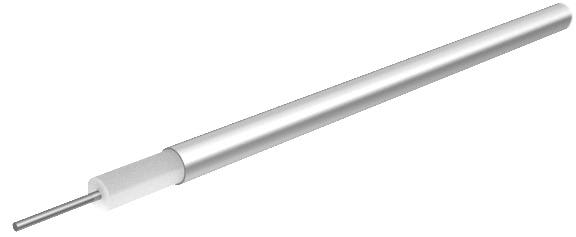

| Description |
RG405 dimension, MIL style, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, no jacket |
| Dielectric Diameter |
1.68 mm |
| Dielectric Material |
PTFE (Polytetrafluoroethylene) |
| Distribution txt |
Semi-rigid, RG405 dimension, MIL style, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, no jacket |
| Halogen Free |
N |
| ID |
SR_86_TP_M17 |
| Impedance |
50 Ohm |
| Impedance Tolerance ± |
1.5 Ohm |
| Insulation Resistance |
100000000 MOhm/m |
| 2011/65/EC (RoHS) |
compliant |
| Number of Screens |
1 |
| Only as Assembly |
N |
| Operating Frequency |
40 GHz |
| Operating Voltage |
1.5 kV |
| Outer Conductor1 Design |
Tube |
| Propagation Velocity |
69.5 % of c |
| Weight |
2.35 kg/100m |
| Screen Effectiveness |
120 dB |
| Signal Delay |
4.8 ns/m |
| Static Bend Radius |
3.18 mm |
| OBJECT_ID |
8427362 |
