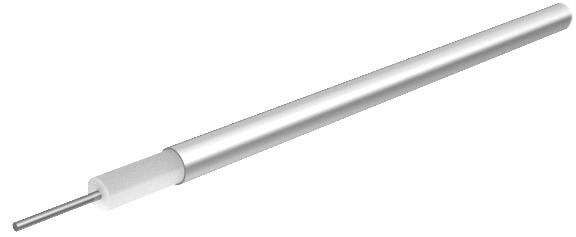

SR_141_TP_M17_COIL

Produktnummer: 22810043
Huber Suhner
Lagerbeholdning:

Verified for Lead-Free Soldering 1
Installation Temperature max. 60 °C
Operating Temperature min. -40 °C
Attenuation Coefficient b max. 0.0476
Epsilon r 2.07
Attenuation Coefficient b 0.03967
Attenuation Coefficient a 0.32544
Attenuation Coefficient a max. 0.39053
Calculated Power N
Centre Conductor Diameter 0.92 mm
Centre Conductor Material Steel, Copper+Silver plated
Installation Temperature min. -20 °C
Operating Temperature max. 125 °C
Outer Conductor 2 Description Outer conductor
Outer Conductor 3 Description Outer conductor
Outer Conductor 4 Description Outer conductor
Screen Frequency max. 18 GHz
Screen Frequency min. 0.1 GHz
Outer Cond1 Coverage 100 %
Outer Conductor1 Diameter 3.58 mm
Outer Conductor1 Material Copper, Tin plated
2002/96/EC (WEEE) no special marking needed
Class 1148
2006/1907/EC (REACH) compliant
2000/53/EC (ELV) compliant
Alternative Cable EZ_141_AL_TP_M17
Armoring 1 Description Armor
Armoring 2 Description Armor
Armoring 3 Description Armor
Armoring 4 Description Armor
Cable Category Formable microwave cable
Cable Family Semi-rigid: Semi-rigid, formable microwave cables
Cable Group Y5
Calc IL/Power up to Freq 17 MHz
Capacitance 98.1 pF/m
Centre Conductor Design Wire
CW Power 450 W
CW Power Frequency 1 GHz
Description RG402 dimension, MIL style, 50 Ohm, 33 GHz, 125°C, ø3.58 mm, no jacket
Dielectric Diameter 2.99 mm
Dielectric Material PTFE (Polytetrafluoroethylene)
Distribution txt Semi-rigid, RG402 dimension, MIL style, 50 Ohm, 33 GHz, 125°C, ø3.58 mm, no jacket
Halogen Free N
ID SR_141_TP_M17
Impedance 50 Ohm
Impedance Tolerance ± 1 Ohm
Insulation Resistance 100000000 MOhm/m
2011/65/EC (RoHS) compliant
Number of Screens 1
Only as Assembly N
Operating Frequency 33 GHz
Operating Voltage 1.9 kV
Outer Conductor1 Design Tube
Propagation Velocity 69.5 % of c
Weight 5.21 kg/100m
Screen Effectiveness 120 dB
Signal Delay 4.8 ns/m
Static Bend Radius 6.35 mm
Test Voltage 5 kV
OBJECT_ID 8422901
