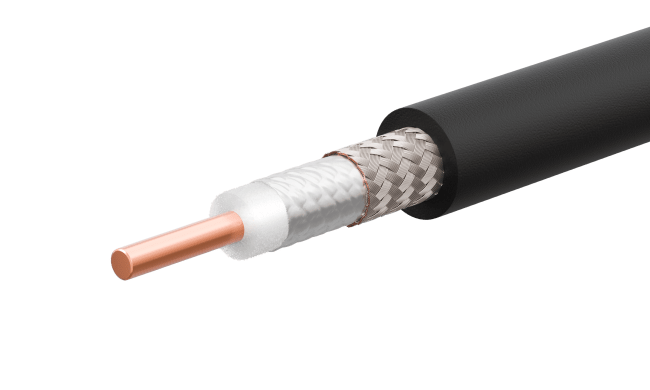

SPUMA 400-FR-01
| H+S | |
|---|---|
| Inductance | 0.2 µH/m |
| UV resistance | ISO 4892-2A |
| Insulation resistance | 1000000 MΩ*m |
| Inner conductor resistance | 4.75 Ω/km |
| Fire characteristics | free of halogenes, acc. standard IEC 60754 |
| Velocity of signal propagation | 85 % |
| Weight | approx. 115 g/m |
| Outer conductor resistance | 6.06 Ω/km |
| Signal delay | 3.9 ns/m |
| Product code | SPUMA_400-FR-01 |
| CPR class | Dca |
| Operating Voltage (at sea level) | ≤ 1.6 kVrms |
| Available as assembly only | No |
| Smoke test | EN 61034-2 |
| Cable group | U30 |
| Capacitance | 78 pF/m |
| Cold bend test | MIL-C-17 § 4.8.19 |
| Test voltage (50 Hz/1 min) | ≤ 3 kVrms |
| Installation temperature | -20 °C ... 60 °C |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Flame propagation standard | UL 1581 § 1100UL 1581 § 1080 (VW-1)EN 60332-1-2IEC 60332-3-25 |
| Operation temperature | -40 °C ... 85 °C |
| Rating | Compliant without exemption , Free of SVHC >0,1% |
| Screening effectiveness | 90 dB at frequency 6GHz |
| Static bending radius | 25 |
| Cable family | Spuma: Flexible, low-loss RF cables |
| Operating frequency | 8 |
| Repeated bending radius | 100 mm |
| Impedance | 50 Ω +/-2Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
