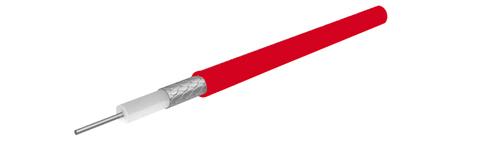

SM 86 FEP

Produktnummer: 22511942
Huber Suhner
Lagerbeholdning:

Verified for Lead-Free Soldering true
Installation Temperature max. 60°C
Operating Temperature min. -65°C
Attenuation Coefficient b max. 0.044
Epsilon r 1.99
Attenuation Coefficient b 0.04
Attenuation Coefficient a 0.6283
Attenuation Coefficient a max. 0.6912
Calculated Power false
Centre Conductor Diameter 0.53mm
Centre Conductor Material Steel, Copper+Silver plated
Inner Cond Res DC 199Ohm/km, 199Ohm/km
Installation Temperature min. -20°C
Operating Temperature max. 165°C
Outer Conductor 2 Description Outer conductor
Outer Conductor 3 Description Outer conductor
Outer Conductor 4 Description Outer conductor
Screen Frequency max. 18GHz
Screen Frequency min. 0.1GHz
Outer Cond Resistance DC 39Ohm/km, 39Ohm/km
Outer Cond1 Coverage 100%
Outer Conductor1 Diameter 2.1mm
Outer Conductor1 Material Copper, Tin plated
2002/96/EC (WEEE) no special marking needed
Class 1148
2006/1907/EC (REACH) compliant
2000/53/EC (ELV) compliant
Armoring 1 Description Armor
Armoring 2 Description Armor
Armoring 3 Description Armor
Armoring 4 Description Armor
Cable Category Formable microwave cable
Cable Family Sucoform: Formstable, hand-formable alternatives to semi-rigid microwave cables
Kabelgruppe - Kabel Y16
Calc IL/Power up to Freq 17MHz
Capacitance 95pF/m
Centre Conductor Design Wire
CW Power 280W
CW Power Frequency 1GHz
Description RG403 dimension, 50 Ohm, 40 GHz, 165°C, ø2.5 mm, FEP jacket
Dielectric Diameter 1.65mm
Dielectric Material PTFE (Polytetrafluoroethylene)
Distribution txt Hand formable, RG403 dimension, 50 Ohm, 40 GHz, 165°C, ø2.5 mm, FEP jacket
Fire Test a IEC 60332-1
Fire Test b UL 1581 § 1080 (VW-1)
Halogen Free false
ID SUCOFORM_86_FEP
Impedance 50Ohm
Impedance Tolerance ± 2Ohm
Insulation Resistance 100000000MOhm/m
Jacket Colour RAL 3027 - rd
Jacket Diameter 2.5mm
Jacket Material FEP (Fluorinated ethylene propylene)
Jacket Tolerance 0.1mm
2011/65/EC (RoHS) compliant
Number of Cycles 50
Number of Screens 1
Only as Assembly false
Operating Frequency 40GHz
Operating Voltage 1.5kV
Outer Conductor1 Design Tin soaked braid
Print on Jacket HUBER+SUHNER SUCOFORM 86 FEP 50 Ohm (production order number)
Propagation Velocity 71% of c
Repeated Bend Radius 20mm
Weight 1.8kg/100m
Screen Effectiveness 100dB
Signal Delay 4.7ns/m
Static Bend Radius 6mm
Test Voltage 3kV
OBJECT_ID 7523565
