| Verified for Lead-Free Soldering |
1 |
| Installation Temperature max. |
60 °C |
| Operating Temperature min. |
-65 °C |
| Attenuation Coefficient b max. |
0.044 |
| Epsilon r |
1.99 |
| Attenuation Coefficient b |
0.04 |
| Attenuation Coefficient a |
0.355 |
| Attenuation Coefficient a max. |
0.39 |
| Calculated Power |
N |
| Centre Conductor Diameter |
0.94 mm |
| Centre Conductor Material |
Steel, Copper+Silver plated |
| Inner Cond Res DC |
64 Ohm/km, 65 Ohm/km |
| Installation Temperature min. |
-20 °C |
| Operating Temperature max. |
165 °C |
| Outer Conductor 2 Description |
Outer conductor |
| Outer Conductor 3 Description |
Outer conductor |
| Outer Conductor 4 Description |
Outer conductor |
| Screen Frequency max. |
18 GHz |
| Screen Frequency min. |
0.01 GHz |
| Outer Cond Resistance DC |
18 Ohm/km, 18 Ohm/km |
| Outer Cond1 Coverage |
99 % |
| Outer Conductor1 Diameter |
3.58 mm |
| Outer Conductor1 Material |
Copper, Tin plated |
| 2002/96/EC (WEEE) |
no special marking needed |
| Class |
1148 |
| 2006/1907/EC (REACH) |
compliant |
| 2000/53/EC (ELV) |
compliant |
| Alternative Cable |
SUCOFORM_141_Cu |
| Armoring 1 Description |
Armor |
| Armoring 2 Description |
Armor |
| Armoring 3 Description |
Armor |
| Armoring 4 Description |
Armor |
| Cable Category |
Formable microwave cable |
| Cable Family |
Sucoform: Formstabe, hand-formable alternatives to semi-rigid microwave cables |
| CABLE GROUP Cable |
Y12 |
| Calc IL/Power up to Freq |
17 MHz |
| Capacitance |
92 pF/m |
| Centre Conductor Design |
Wire |
| CW Power |
425 W |
| CW Power Frequency |
1 GHz |
| Description |

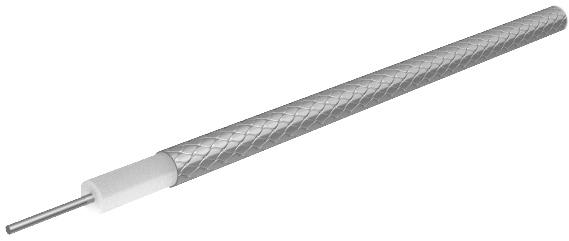

RG402 dimension, 50 Ohm, 33 GHz, 165°C, ø3.58 mm, no jacket |
| Dielectric Diameter |
2.95 mm |
| Dielectric Material |
PTFE (Polytetrafluoroethylene) |
| Distribution txt |
Hand formable, RG402 dimension, 50 Ohm, 33 GHz, 165°C, ø3.58 mm, no jacket |
| Fire Test a |
IEC 60332-1 |
| Fire Test b |
UL 1581 § 1080 (VW-1) |
| Halogen Free |
N |
| ID |
SUCOFORM_141 |
| Impedance |
50 Ohm |
| Impedance Tolerance ± |
2 Ohm |
| Insulation Resistance |
100000000 MOhm/m |
| Jacket Diameter |
3.58 mm |
| 2011/65/EC (RoHS) |
compliant |
| Number of Cycles |
50 |
| Number of Screens |
1 |
| Only as Assembly |
N |
| Operating Frequency |
33 GHz |
| Operating Voltage |
1.9 kV |
| Outer Conductor1 Design |
Tin soaked braid |
| Print on Jacket |
HUBER+SUHNER SUCOFORM 141 50 Ohm (PA no.) |
| Propagation Velocity |
71 % of c |
| Repeated Bend Radius |
40 mm |
| Weight |
4 kg/100m |
| Screen Effectiveness |
100 dB |
| Signal Delay |
4.7 ns/m |
| Static Bend Radius |
8 mm |
| Test Voltage |
5 kV |
| OBJECT_ID |
6425640 |
