SF126EA/Nm/Nm/1500mm

Produktnummer: 85072830
Huber Suhner
Lagerbeholdning:

Impedance 50Ohm
Diameter Cable(max.) 10.3mm
Signal Delay 4.3ns/m
RoHS compliant
Operating Temp max 85°C
Weight 0.36kg
Series Connector A false
Series Connector B false
Min. VSWR 1.253
Marketing Description The SUCOFLEX 126_EA high end cable assemblies are designed to provide optimal performance up to 18 GHz were stringent electrical requirements – in particular stability and low loss, are important. Protected by an A-ruggedisation, the SUCOFLEX 126E becomes a flexible and robust test and measurement cable!
Material 85072830
Propagation Velocity 77%
Product Family SUCOFLEX 100
Type Cable SUCOFLEX 126EA
Length 1500mm
REACH compliant
Description for Distributor 18GHz SF126EA Nm/Nm 1.5m
Max. Insertion Loss 2.03dB
Type Description Connector B SF_11_N-452
Type Description Connector A SF_11_N-452
Gender B plug
Gender A plug
Min. Return Loss[-dB] 19
Operating Temp min -40°C
Product Category Microwave Cable Assemblies
Length Type REF to REF
WEEE relevant
Min.Bend.Rad.Static 30mm
Shape A straight
Shape B straight
Max. Operating Freqency 18GHz

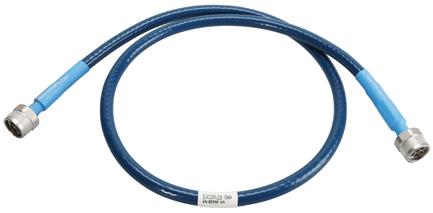

Description Test cable ruggedized, 18 GHz, SUCOFLEX 126EA, Nm/Nm, 1500mm
ID SF126EA/11N/11N/1500mm
