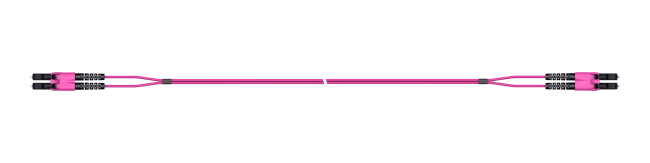

PCDS_LCMP_LCMP_O417E_05.0_LL
| H+S | |
|---|---|
| Boot colour | Black , Black |
| Insertion loss typical | ≤ 0.08 dB , ≤ 0.08 dB |
| Return loss | ≥ 35 dB , ≥ 35 dB |
| Interface | connectorized , connectorized |
| Insertion loss 97% | ≤ 0.15 dB , ≤ 0.15 dB |
| Polarity | A-B / B-A straight polarity |
| Flammability rating | UL 94 V-0 |
| bre.usedcable01_crush-resistance-installation | 10000 N/dm |
| Mechanical Interface Standard | IEC 61754-20, TIA 604-10-A (LC) , IEC 61754-20, TIA 604-10-A (LC) |
| Assembly family | Duplex patch cord - LC to LC |
| Performance class H+S | L , L |
| Outer jacket material | LSFH |
| Clip type | Duplex , Duplex |
| Tensile strength during installation | 300 N |
| Fiber quantity | 2 , 2 |
| Application Area | Indoor |
| Product code | PCDS_LCMP_LCMP_O417E_XX.X_LL |
| Gender | Plug , Plug |
| Crush resistance in service | 4000 N/dm |
| Cable Description | Duplex cable Fig. 8 |
| Clip family | Push-pull , Push-pull |
| Outer jacket diameter | 1.7mm x 3.5mm |
| Type | Fiber Optic Connector , Fiber Optic Connector |
| Fiber type | G50/125-OM4 |
| Strain relief | aramide yarn |
| Connector family | LC , LC |
| Tensile strength in service | 100 N |
| bre.usedcable01_bending-minimal-operation-radius | 25 mm |
| Polishing | UPC , UPC |
| Operation temperature | -25 °C ... 70 °C |
