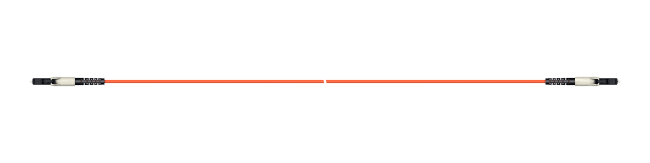

PC01_LCME_LCME_O220E_07.0_MM
H+S | |
---|---|
Boot colour | Black , Black |
Insertion loss typical | ≤ 0.12 dB , ≤ 0.12 dB |
Return loss | ≥ 35 dB , ≥ 35 dB |
Interface | connectorized , connectorized |
Insertion loss 97% | ≤ 0.25 dB |
Flammability rating | UL 94 V-0 |
bre.usedcable01_crush-resistance-installation | 3000 N/dm |
Mechanical Interface Standard | IEC 61754-20, TIA 604-10-A (LC) , IEC 61754-20, TIA 604-10-A (LC) |
Polishing | UPC , UPC |
Fire propagation standard | IEC 60332-1-2IEC 60332-3-25 |
Assembly family | Simplex patch cord - LC to LC |
Operation temperature | -25 °C ... 70 °C |
Performance class H+S | M , M |
Outer jacket material | LSFH |
Clip type | Simplex , Simplex |
Tensile strength during installation | 400 N |
Fiber quantity | 1 , 1 |
Application Area | Indoor |
Product code | PC01_LCME_LCME_O220E_XX.X_MM |
bre.usedcable01_tube-diameter-and-quantity-dyn | 1 x 0.9 mm |
Gender | Plug , Plug |
Crush resistance in service | 1000 N/dm |
Cable Description | Simplex cable |
Clip family | Push-pull , Push-pull |
Outer jacket diameter | 2mm |
Type | Fiber Optic Connector , Fiber Optic Connector |
Fiber type | G50/125-OM2 |
Strain relief | aramide yarn |
Connector family | LC , LC |
Tensile strength in service | 200 N |
bre.usedcable01_bending-minimal-operation-radius | 25 mm |
CPR class | Dca-s1a,d0,a1 |
