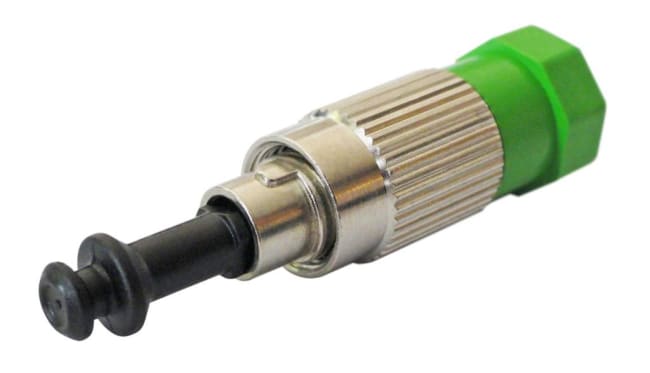

OFA-FCPC-A-070-S-01-001
| H+S | |
|---|---|
| Housing colour | Metal |
| Operating Wavelength in nm | 1260 nm to 1360nm1460 nm to 1625nm |
| Attenuation steps | 1 dB |
| Mechanical interface standards | IEC 61754-13, TIA 604-4B, EN 50377-2-1, EN 50377-2-2 (FC) |
| Housing material | Zinc Nickel plated |
| Storage temperature | -40 °C ... 85 °C |
| Repeatability of IL | +/- 0.1 dB |
| Attenuator Type | Plug-in |
| Optical Interface | APC |
| Return loss | ≥ 60 dB |
| Mating cycles with repeated cleaning | 1000 |
| Attenuation | 1 dB ... 30 dB |
| Attenuation technology | attenuated fiber |
| Product code | OFA-FCPC-A-XXX-S-01-001 |
| Ferrule material | Ceramic |
| Connector family | FC |
| Operation temperature | -25 °C ... 70 °C |
